Adaptall 9607-08-S12-20
Send Print
  1. pin-int

Adaptall 9607-08-S12-20

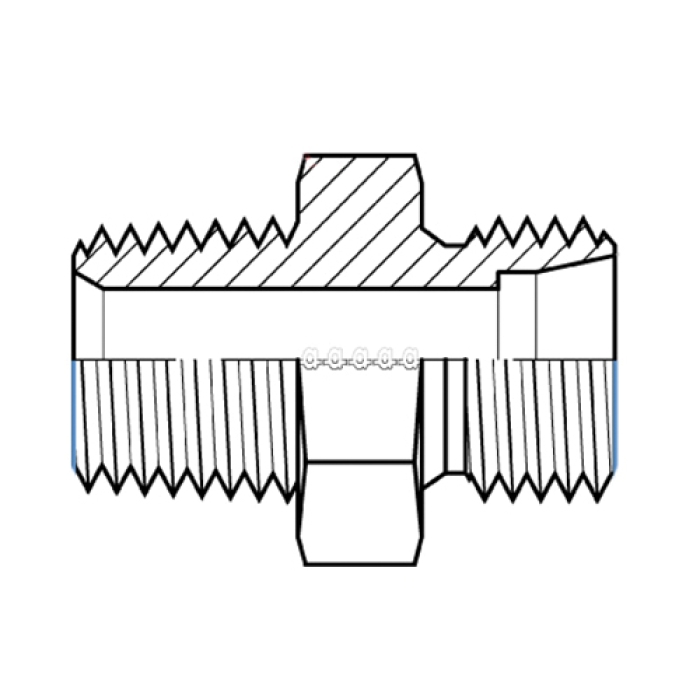

Adaptall 9607 Carbon Steel Heavy-Duty Straight Adapter, 1/2 in MNPT x 12 mm Male DIN 24 deg Tube

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9607-08-S12-20
  • MPN: 9607-08-S12-20
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall Heavy-Duty Straight Adapter, Series: 9607, Connection Type 1: NPT, Gender 1: Male, Connection Size 1: 1/2 in, Thread Size 1: 1/2-14, Connection Type 2: DIN 24 deg Tube, Gender 2: Male, Connection Size 2: 12 mm, Thread Size 2: M20 x 1.5, Hex Size: 27 mm, Carbon Steel, 43.3 mm Length, Dimension Standards: ANSI B1.20.3, DIN 2353, ISO 8434-1

Series      :      9607
Connection Size 1      :      1/2 in
Connection Size 2      :      12 mm
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/2 in NPT
Shape      :      Straight
Connection 2      :      12 mm Metric
Thread Size 1      :      1/2-14
Thread Size 2      :      M20 x 1.5
Dimension Standards      :      ANSI B1.20.3, DIN 2353, ISO 8434-1
Length      :      43.3 mm
Fitting Type      :      Straight Adapter
Hex Size      :      27 mm
Material      :      Carbon Steel
Connection Type 1      :      NPT
Connection Type 2      :      DIN 24 deg Tube
