Adaptall 9607-06-L12-18

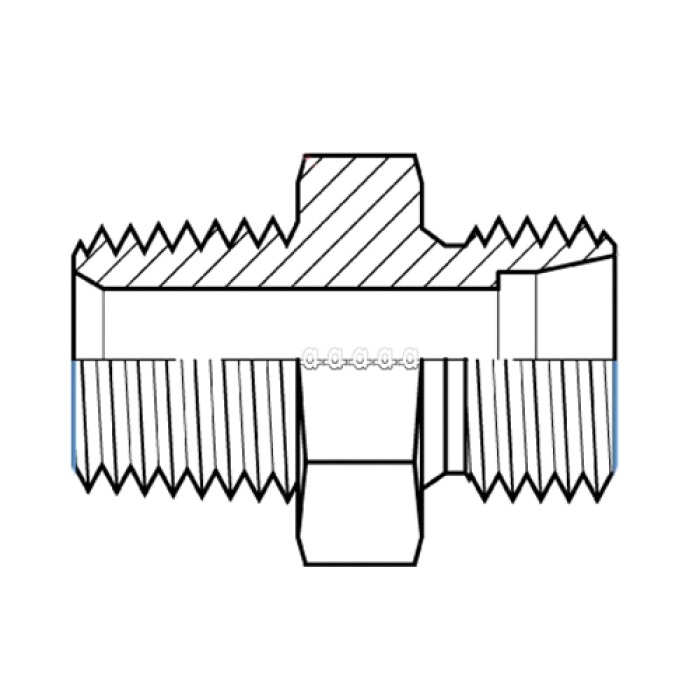

Adaptall 9607 Carbon Steel Port Only Light-Duty Straight Adapter, 18 mm Male Metric x 3/8 in MNPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9607-06-L12-18
  • MPN: 9607-06-L12-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall Port Only Light-Duty Straight Adapter, Series: 9607, Connection Type 1: Metric, Gender 1: Male, Connection Size 1: 18 mm, Thread Size 1: M18 x 1.5, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Carbon Steel, Dimension Standards: ANSI B1.20.3, DIN 7631, ISO 6149, ISO 9974

Series      :      9607
Connection Size 1      :      18 mm
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      18 mm Metric
Shape      :      Straight
Connection 2      :      3/8 in NPT
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      3/8-18
Dimension Standards      :      ANSI B1.20.3, DIN 7631, ISO 6149, ISO 9974
Fitting Type      :      Straight Adapter
Material      :      Carbon Steel
Connection Type 1      :      Metric
Connection Type 2      :      NPT
