Adaptall 9607-08-L12-18
Send Print
  1. pin-int

Adaptall 9607-08-L12-18

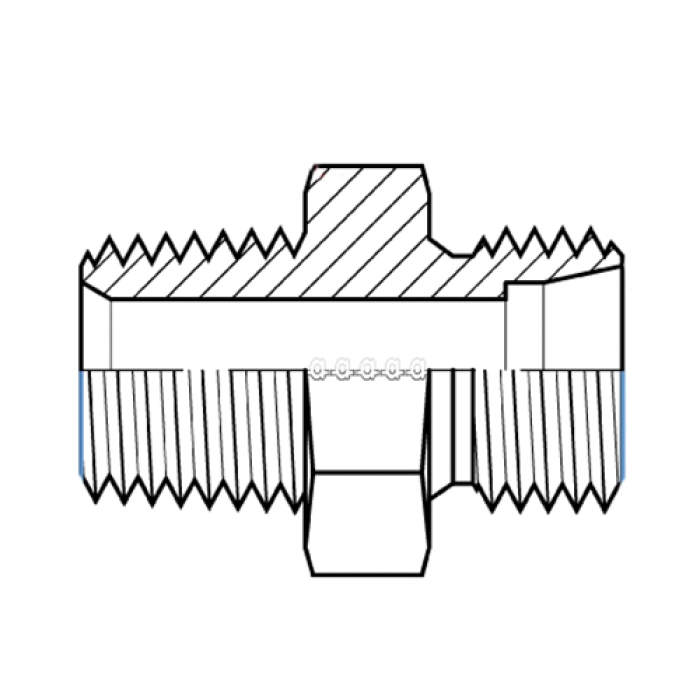

Adaptall 9607 Carbon Steel Straight Adapter, L18 Male Metric DIN 24° Tube x 1/2 in Male NPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9607-08-L12-18
  • MPN: 9607-08-L12-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 9607 Carbon Steel Straight Adapter, Connection Size 1: L18, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: NPT

Series      :      9607
Connection Size 1      :      L18
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      18 mm Light
Shape      :      Straight
Connection 2      :      1/2 in NPT
Thread Size 1      :      M26 x 1.5
Thread Size 2      :      1/2-14
Dimension Standards      :      ANSI B1.20.3, ISO 9974, ISO 6149, DIN 7631
Length      :      43 mm
Fitting Type      :      Straight Adapter
Width      :      24 mm
Hex Size      :      24 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      NPT
