Adaptall 9636S-42-S30-16
Send Print
  1. pin-int

Adaptall 9636S-42-S30-16

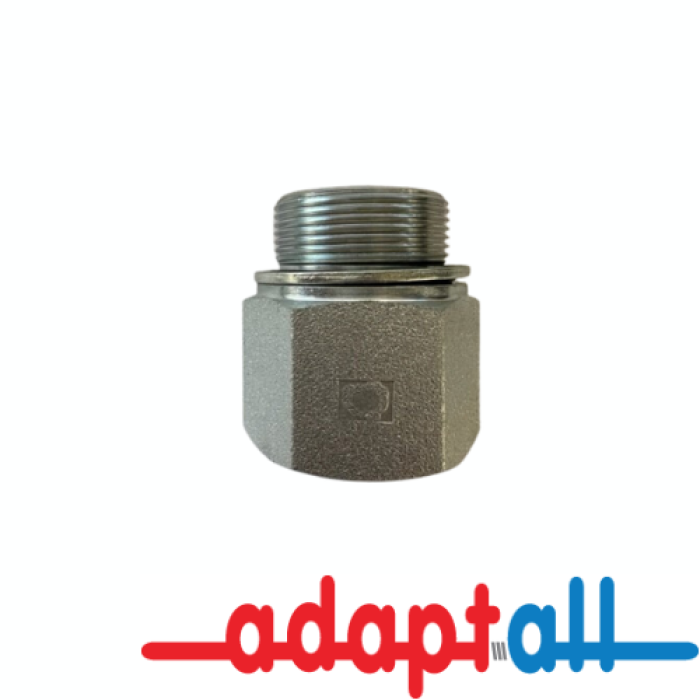

Adaptall 9636S Carbon Steel Straight Adapter, S30 Male Metric DIN 24° Tube x 1 in Female NPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 9636S-42-S30-16
  • MPN: 9636S-42-S30-16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Adaptall 9636S Carbon Steel Straight Adapter, Connection Size 1: S30, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1 in, Gender 2: Female, Connection Type 2: NPT

Series      :      9636S
Connection Size 1      :      S30
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      30 mm Heavy
Shape      :      Straight
Connection 2      :      1 in NPT
Thread Size 1      :      M42 x 2
Thread Size 2      :      1-11-1/2
Dimension Standards      :      ISO 8434-1, DIN 2353, ANSI B1.20.3
Length      :      57.7 mm
Fitting Type      :      Straight Adapter
Hex Size      :      50 mm
Material      :      Carbon Steel
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      NPT
