Adaptall SS9037-12-12

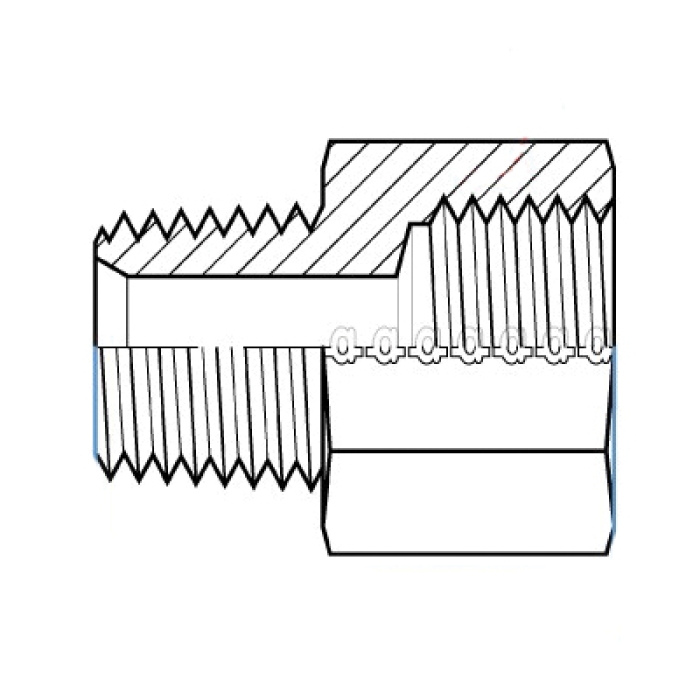

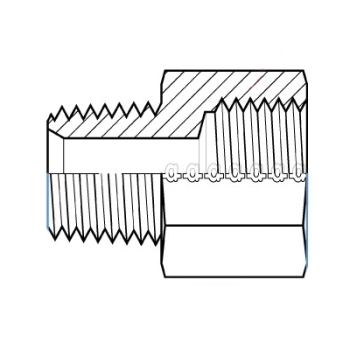

Adaptall SS9037 Stainless Steel Straight Adapter, 3/4 in Female BSPP x 3/4 in Male NPT

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC SS9037-12-12
  • MPN: SS9037-12-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall SS9037 Stainless Steel Straight Adapter, Connection Size 1: 3/4 in, Gender 1: Female, Connection Type 1: BSPP x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: NPT

Series      :      SS9037
Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      3/4 in BSPP
Shape      :      Straight
Connection 2      :      3/4 in NPT
Thread Size 1      :      G 3/4-14
Thread Size 2      :      3/4-14
Dimension Standards      :      ANSI B1.20.3, ISO 1179, ISO 8434-6, BS 5200
Length      :      49.9 mm
Fitting Type      :      Straight Adapter
Width      :      35 mm
Hex Size      :      35 mm
Material      :      Stainless Steel
Connection Type 1      :      BSPP
Connection Type 2      :      NPT
