Aeroquip® 15.063-6-4
Send Print
  1. pin-int

Aeroquip® 15.063-6-4

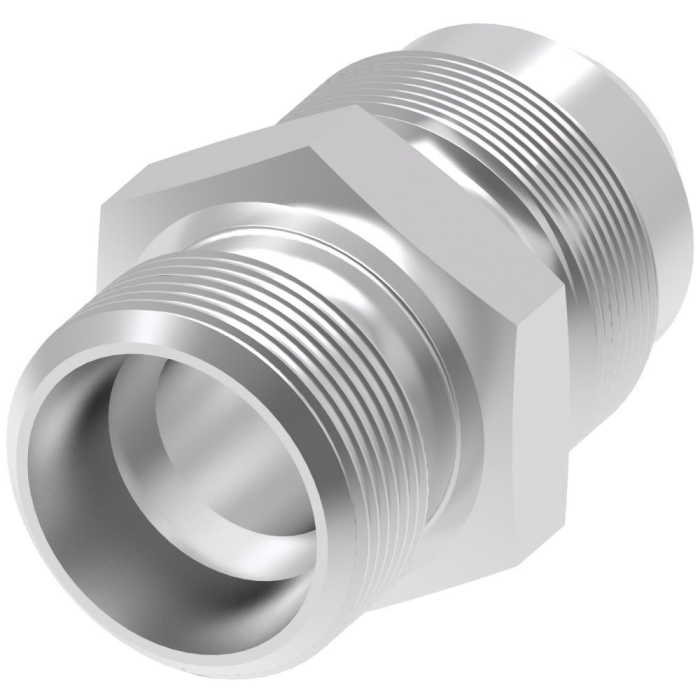

Aeroquip® 15.063 Dura-Kote Carbon Steel Straight Adapter, 6.4 mm Male Metric DIN 24° Tube x 1/4 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 15.063-6-4
  • MPN: 15.063-6-4
  • UPC: 678146185150
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 15.063 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 6.4 mm, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC, 5000 psi, -40 to 250 deg F

Series      :      15.063
Connection Size 1      :      6.4 mm
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      6.4 mm Light
Shape      :      Straight
Connection 2      :      1/4 in JIC
Thread Size 1      :      M12 x 1.5
Thread Size 2      :      7/16-20
Finish      :      Dura-Kote
Dimension Standards      :      DIN 3901/3902 l.Rh
Length      :      1.22 in
Fitting Type      :      Straight Adapter
Width      :      0.55 in
Height      :      0.55 in
Hex Size      :      0.55 in
Material      :      Carbon Steel
Pressure Rating      :      5000 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      JIC

Applications: Hydraulic, instrumentation, chemical processing systems
