Aeroquip® 15.117-16-12 AER 15.117-16-12 | Tipco Technologies
Aeroquip® 15.117-16-12
Send Print
  1. pin-int

Aeroquip® 15.117-16-12

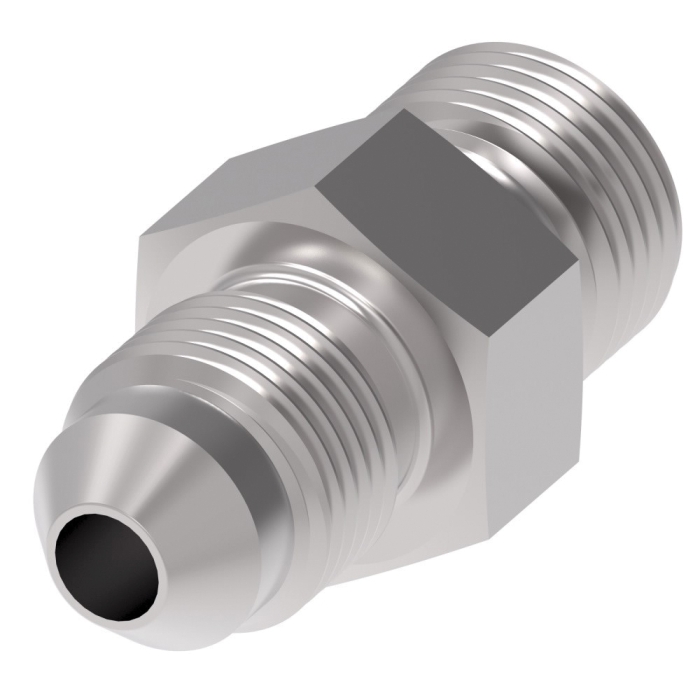

Aeroquip® 15.117 Dura-Kote Carbon Steel Straight Adapter, 19 mm Male Metric DIN 60° Flare x 3/4 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 15.117-16-12
  • MPN: 15.117-16-12
  • UPC: 678146043658
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 15.117 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 19 mm, Gender 1: Male, Connection Type 1: Metric DIN 60° Flare x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: JIC, -40 to 250 deg F

Series      :      15.117
Connection Size 1      :      19 mm
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      19 mm Metric 60
Shape      :      Straight
Connection 2      :      3/4 in JIC
Thread Size 1      :      M26 x 1.5
Thread Size 2      :      1-1/16-12
Finish      :      Dura-Kote
Dimension Standards      :      DIN 7631
Length      :      1.69 in
Fitting Type      :      Straight Adapter
Width      :      1.18 in
Height      :      1.18 in
Hex Size      :      1.18 in
Material      :      Carbon Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Metric DIN 60° Flare
Connection Type 2      :      JIC

Applications: Hydraulic, instrumentation, chemical processing systems
