Aeroquip® 15.147-10-8
Send Print
  1. pin-int

Aeroquip® 15.147-10-8

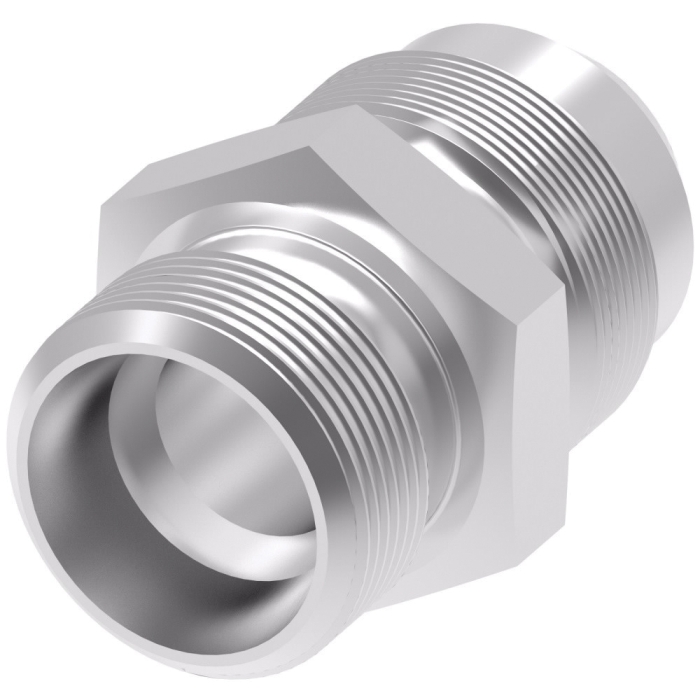

Aeroquip® 15.147 Dura-Kote Carbon Steel Straight Adapter, 12.7 mm Male Metric DIN 24° Tube x 1/2 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 15.147-10-8
  • MPN: 15.147-10-8
  • UPC: 678146043696
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 15.147 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 12.7 mm, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: JIC, 3000 psi, -40 to 250 deg F

Series      :      15.147
Connection Size 1      :      12.7 mm
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      12.7 mm Heavy
Shape      :      Straight
Connection 2      :      1/2 in JIC
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      3/4-16
Finish      :      Dura-Kote
Dimension Standards      :      DIN 3901/3902 s.Rh
Length      :      1.4 in
Fitting Type      :      Straight Adapter
Width      :      0.87 in
Height      :      0.87 in
Hex Size      :      0.87 in
Material      :      Carbon Steel
Pressure Rating      :      3000 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      JIC

Applications: Hydraulic, instrumentation, chemical processing systems
