Aeroquip® 15.163-8-6 AER 15.163-8-6 | Tipco Technologies
Aeroquip® 15.163-8-6
Send Print
  1. pin-int

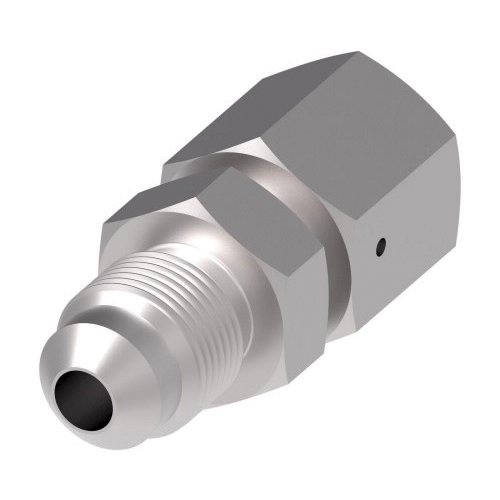

Aeroquip® 15.163-8-6

Aeroquip® 15.163 Dura-Kote Carbon Steel Straight Adapter, 9.7 mm Female Metric DIN 24° Tube x 3/8 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 15.163-8-6
  • MPN: 15.163-8-6
  • UPC: 678146122698
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 15.163 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 9.7 mm, Gender 1: Female, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: JIC, -40 to 250 deg F

Series      :      15.163
Connection Size 1      :      9.7 mm
Connection Size 2      :      3/8 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      9.7 mm Light
Shape      :      Straight
Connection 2      :      3/8 in JIC
Thread Size 1      :      M16 x 1.5
Thread Size 2      :      9/16-18
Finish      :      Dura-Kote
Dimension Standards      :      DIN 3901/3902 l.Rh
Length      :      1.4 in
Fitting Type      :      Straight Adapter
Width      :      0.75 in
Height      :      0.75 in
Hex Size      :      0.748 in
Material      :      Carbon Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      JIC

Applications: For hydraulic, instrumentation and chemical processing systems
