Aeroquip® 202702-14-16S AER 202702-14-16S | Tipco Technologies
Aeroquip® 202702-14-16S
Send Print
  1. pin-int

Aeroquip® 202702-14-16S

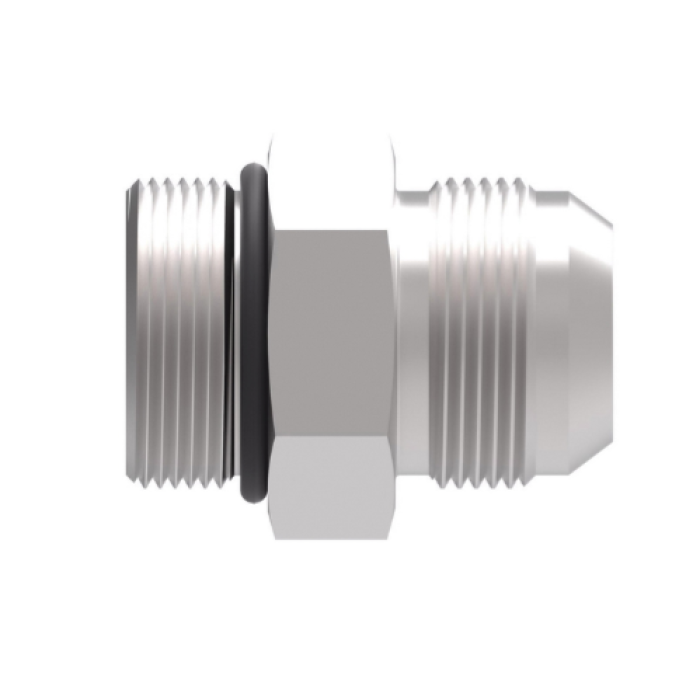

Aeroquip® 202702 Dura-Kote Carbon Steel Straight Adapter, 7/8 in Male O-Ring Boss x 1 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 202702-14-16S
  • MPN: 202702-14-16S
  • UPC: 678146181190
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 202702 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 7/8 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: JIC, 2500 psi, -40 to 250 deg F

Series      :      202702
Connection Size 1      :      7/8 in
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      7/8 in ORB
Shape      :      Straight
Connection 2      :      1 in JIC
Thread Size 1      :      1-3/16-12
Thread Size 2      :      1-5/16-12
Finish      :      Dura-Kote
Dimension Standards      :      SAE 070120
Length      :      2.04 in
Fitting Type      :      Straight Adapter
Width      :      1.38 in
Height      :      1.38 in
Hex Size      :      1.38 in
Material      :      Carbon Steel
Pressure Rating      :      2500 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      JIC

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
