Aeroquip® 202712-4-4S
Send Print
  1. pin-int

Aeroquip® 202712-4-4S

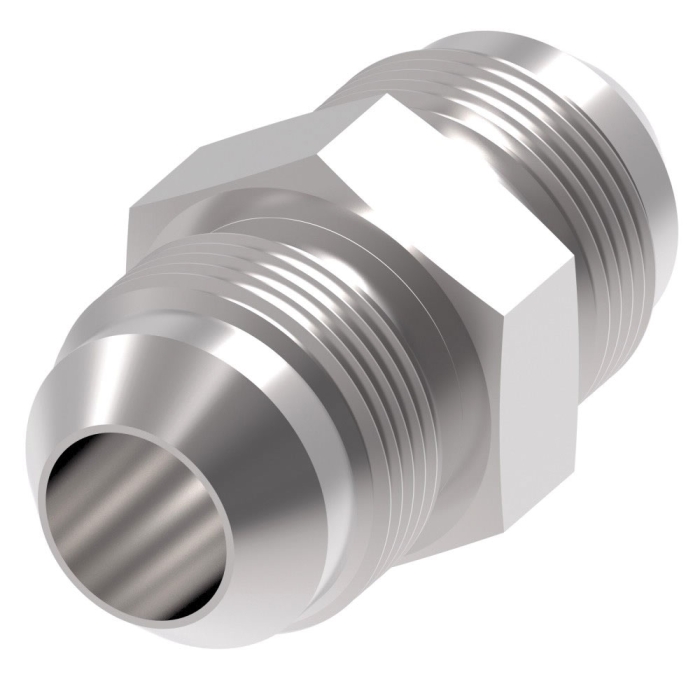

Aeroquip® 202712 Dura-Kote Carbon Steel Straight Adapter, 1/4 in Male JIC x 1/4 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 202712-4-4S
  • MPN: 202712-4-4S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 202712 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 1/4 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC, 4500 psi, -40 to 250 deg F

Series      :      202712
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/4 in JIC
Shape      :      Straight
Connection 2      :      1/4 in JIC
Thread Size 1      :      7/16-20
Thread Size 2      :      7/16-20
Finish      :      Dura-Kote
Dimension Standards      :      SAE 070119
Fitting Type      :      Straight Adapter
Hex Size      :      1.17 in
Material      :      Carbon Steel
Pressure Rating      :      4500 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      JIC
Connection Type 2      :      JIC

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
