Aeroquip® 2045-12-16S
Send Print
  1. pin-int

Aeroquip® 2045-12-16S

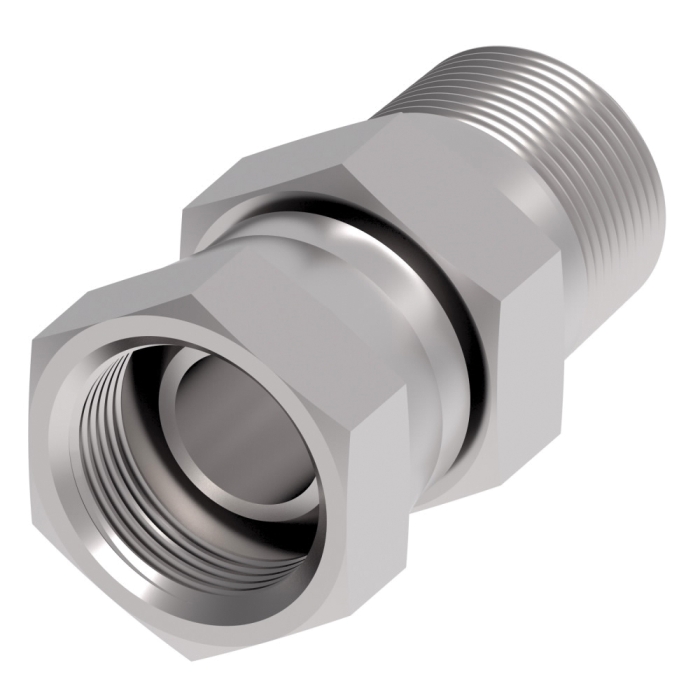

Aeroquip® 2045 Dura-Kote Carbon Steel Straight Adapter, 3/4 in Female NPSM x 1 in Male NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2045-12-16S
  • MPN: 2045-12-16S
  • UPC: 678146049995
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 2045 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 3/4 in, Gender 1: Female, Connection Type 1: NPSM x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: NPT, -40 to 250 deg F

Series      :      2045
Connection Size 1      :      3/4 in
Connection Size 2      :      1 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      3/4 in NPSM
Shape      :      Straight
Connection 2      :      1 in NPT
Thread Size 1      :      3/4-14
Thread Size 2      :      1-11-1/2
Finish      :      Dura-Kote
Dimension Standards      :      SAE 140130
Length      :      2 in
Fitting Type      :      Straight Adapter
Width      :      1-3/8 in
Height      :      1-3/8 in
Hex Size      :      1-3/8 x 1-1/4 in
Material      :      Carbon Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      NPSM
Connection Type 2      :      NPT

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
