Aeroquip® 2046-16-16S

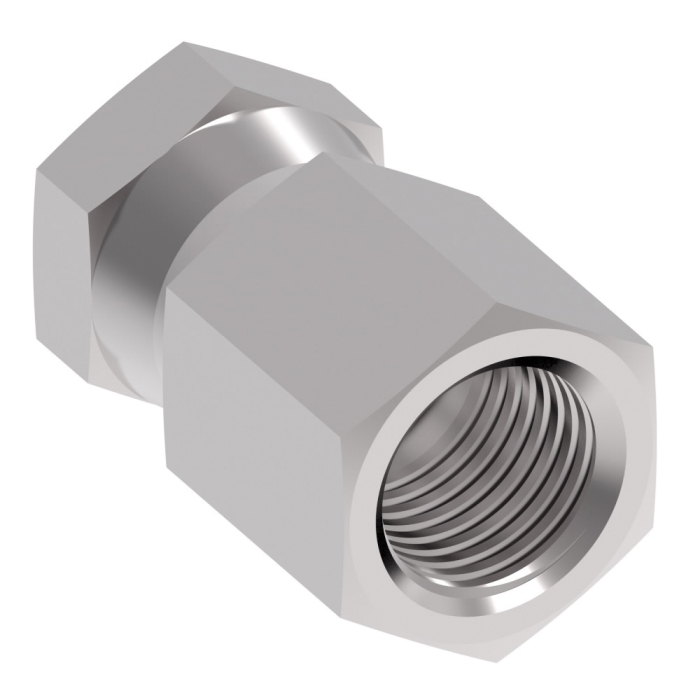

Aeroquip® 2046 Dura-Kote Carbon Steel Straight Adapter, 1 in Female NPSM x 1 in Female NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2046-16-16S
  • MPN: 2046-16-16S
  • UPC: 678146050083
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 2046 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 1 in, Gender 1: Female, Connection Type 1: NPSM x Connection Size 2: 1 in, Gender 2: Female, Connection Type 2: NPT, 1625 psi, -40 to 250 deg F

Series      :      2046
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Gender 1      :      Female
Gender 2      :      Female
Connection 1      :      1 in NPSM
Shape      :      Straight
Connection 2      :      1 in NPT
Thread Size 1      :      1-11-1/2
Thread Size 2      :      1-11-1/2
Finish      :      Dura-Kote
Dimension Standards      :      SAE 140131
Length      :      2.06 in
Fitting Type      :      Straight Adapter
Width      :      1.5 in
Height      :      1.5 in
Hex Size      :      1-1/2 in
Material      :      Carbon Steel
Pressure Rating      :      1625 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      NPSM
Connection Type 2      :      NPT

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries

  • pdfAeroquip_210212-16S_CAT.pdf https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
  • linkCAD File Link https://www.eatonpowersource.com/3d-models/partsolutions/?partnumber=2046-16-16s&modelfilename=pws_0009659stp.stp
  • pdfAeroquip_210212-16S_CAT.pdf https://shop.tipcotech.com//ASSETS/DOCUMENTS/ITEMS/EN/Aeroquip_210212-16S_CAT.pdf
