Aeroquip® 2239-16-16S

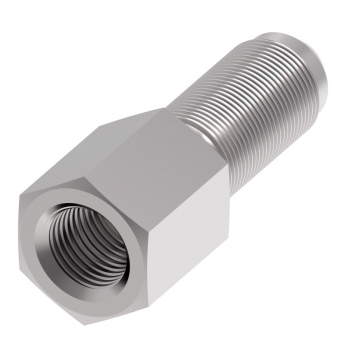

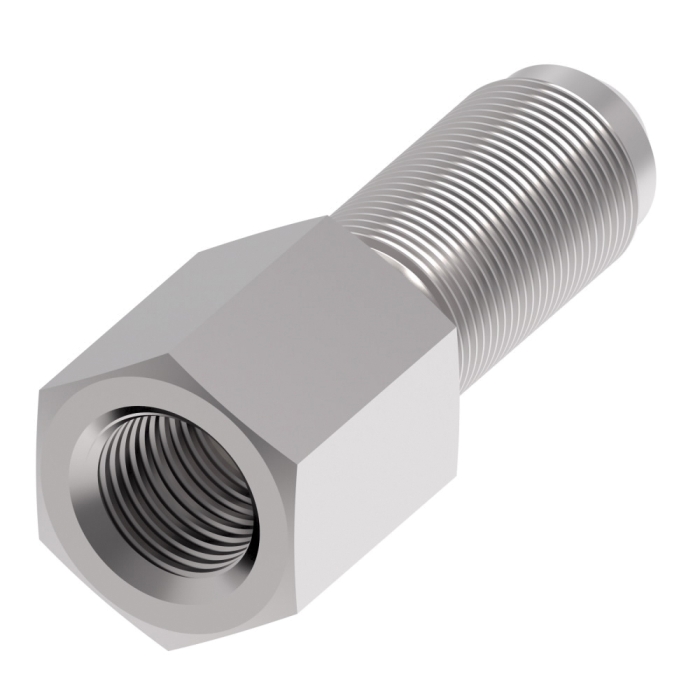

Aeroquip® 2239 Dura-Kote Carbon Steel Straight Bulkhead Adapter, 1 in Male JIC x 1 in Female NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2239-16-16S
  • MPN: 2239-16-16S
  • UPC: 678146053176
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 2239 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 1 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1 in, Gender 2: Female, Connection Type 2: NPT, -65 to 400 deg F

Series      :      2239
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1 in JIC
Shape      :      Straight
Connection 2      :      1 in NPT
Thread Size 1      :      1-5/16-12
Thread Size 2      :      1-11-1/2
Finish      :      Dura-Kote
Length      :      3-1/4 in
Fitting Type      :      Straight Bulkhead Adapter
Width      :      1-5/8 in
Height      :      1-5/8 in
Hex Size      :      1-5/8 in
Material      :      Carbon Steel
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      JIC
Connection Type 2      :      NPT

Applications: Chemical processing systems, hydraulic, instrumentation
