Aeroquip® 2240-4-6S AER 2240-4-6S | Tipco Technologies
Aeroquip® 2240-4-6S
Send Print
  1. pin-int

Aeroquip® 2240-4-6S

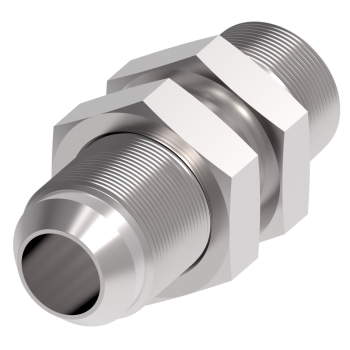

Aeroquip® 2240 Dura-Kote Carbon Steel Straight Bulkhead Adapter, 3/8 in Male JIC x 1/4 in Male NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2240-4-6S
  • MPN: 2240-4-6S
  • UPC: 639789286772
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 2240 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 3/8 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: NPT, 5000 psi, -65 to 400 deg F

Series      :      2240
Connection Size 1      :      3/8 in
Connection Size 2      :      1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/8 in JIC
Shape      :      Straight
Connection 2      :      1/4 in NPT
Thread Size 1      :      9/16-18
Thread Size 2      :      1/4-18
Finish      :      Dura-Kote
Length      :      2.12 in
Fitting Type      :      Straight Bulkhead Adapter
Width      :      0.81 in
Height      :      0.81 in
Hex Size      :      0.81 in
Material      :      Carbon Steel
Pressure Rating      :      5000 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      JIC
Connection Type 2      :      NPT

Applications: Chemical processing systems, hydraulic, instrumentation
