Aeroquip® 226601-12-12S

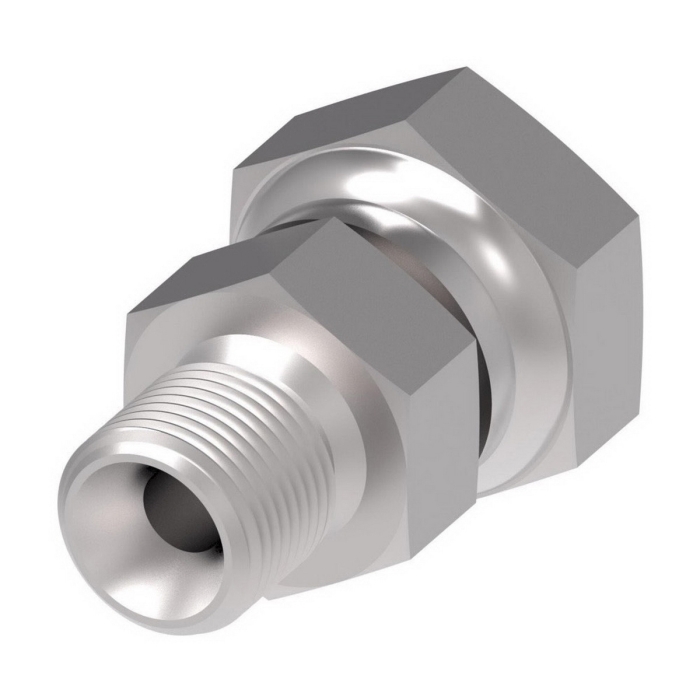

Aeroquip® 226601 Carbon Steel Straight Adapter, 3/4 in Male O-Ring Boss x 3/4 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 226601-12-12S
  • MPN: 226601-12-12S
  • UPC: 678146053503
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 226601 Carbon Steel Straight Adapter, Connection Size 1: 3/4 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: JIC, 3000 psi, -40 to 250 deg F

Series      :      226601
Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      3/4 in ORB
Shape      :      Straight
Connection 2      :      3/4 in JIC
Thread Size 1      :      1-1/16-12
Thread Size 2      :      1-1/16-12
Length      :      1.9 in
Fitting Type      :      Straight Adapter
Width      :      1.25 in
Height      :      1.25 in
Hex Size      :      1-1/4 in
Material      :      Carbon Steel
Pressure Rating      :      3000 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      JIC

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
