Aeroquip® 259-2021-8-8
Send Print
  1. pin-int

Aeroquip® 259-2021-8-8

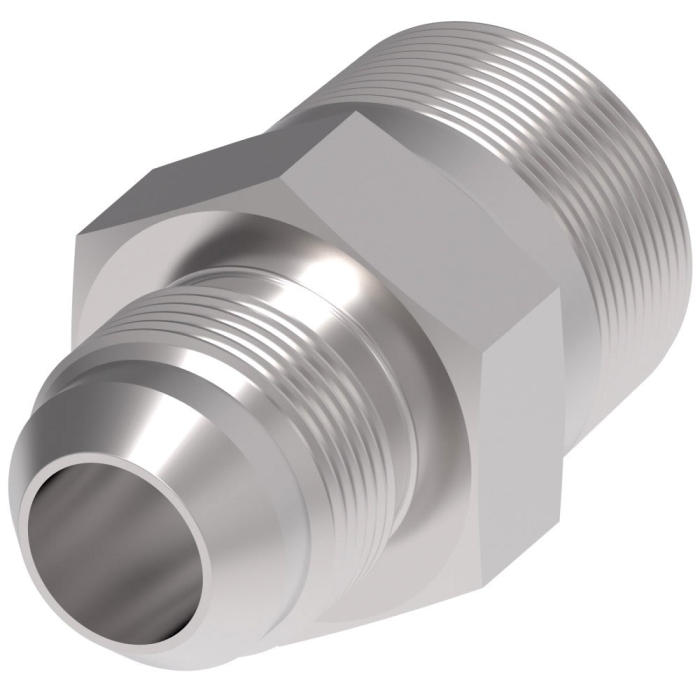

Aeroquip® 259-2021 Passivate 316 Stainless Steel Straight Adapter, 1/2 in Male JIC x 1/2 in Male NPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 259-2021-8-8
  • MPN: 259-2021-8-8
  • UPC: 678146099433
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 259-2021 Passivate 316 Stainless Steel Straight Adapter, Connection Size 1: 1/2 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: NPT, 4000 psi, -65 to 400 deg F

Series      :      259-2021
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/2 in JIC
Shape      :      Straight
Connection 2      :      1/2 in NPT
Thread Size 1      :      3/4-16
Thread Size 2      :      1/2-14
Finish      :      Passivate
Length      :      1.79 in
Fitting Type      :      Straight Adapter
Width      :      0.866 in
Height      :      0.866 in
Hex Size      :      0.866 in
Material      :      316 Stainless Steel
Pressure Rating      :      4000 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      JIC
Connection Type 2      :      NPT

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
