Aeroquip® 2018-4-6S AER 2018-4-6S | Tipco Technologies
Aeroquip® 2018-4-6S
Send Print
  1. pin-int

Aeroquip® 2018-4-6S

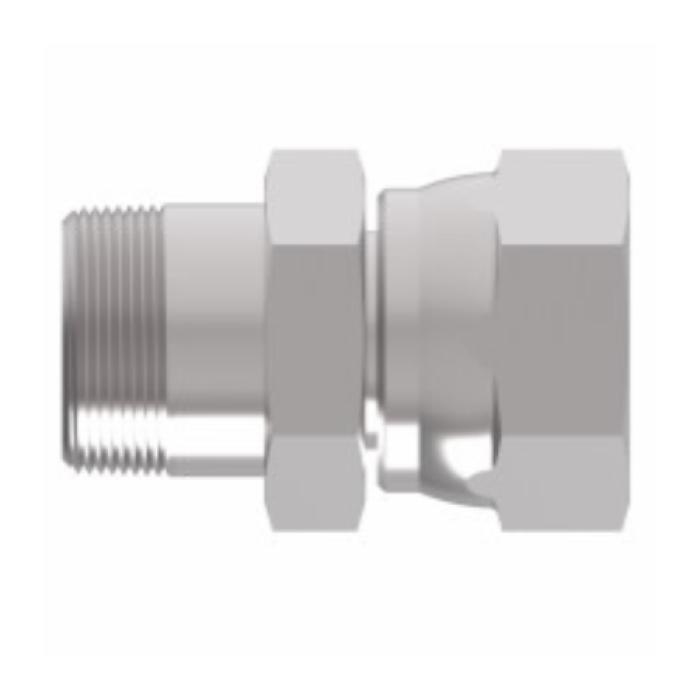

Aeroquip® 6505 Dura-Kote Carbon Steel Straight Adapter, 1/4 Male NPT x 3/8 in Female JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 2018-4-6S
  • MPN: 2018-4-6S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 6505 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1:1/4 in, Gender 1: Male, Connection Type 1:NPT x Connection Size 2: 3/8, Gender 2: Female, Connection Type 2: JIC, 5000 psi, -40 to 250 deg F

Dimensions      :      1.68 in L
Series      :      6505
Connection Size 1      :      3/8 in
Connection Size 2      :      1/4 in
Gender 1      :      Female
Gender 2      :      Female
Connection 1      :      3/8 in JIC
Shape      :      Straight
Connection 2      :      1/4 in NPT
Thread Size 1      :      9/16-18
Thread Size 2      :      1/4-18
Finish      :      Dura-Kote
Dimension Standards      :      SAE J514
Fitting Type      :      Straight Adapter
Hex Size      :      0.688 x 0.562 in
Material      :      Carbon Steel
Pressure Rating      :      5000 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      JIC
Connection Type 2      :      NPT
