Aeroquip® FF1010-1006S
Send Print
  1. pin-int

Aeroquip® FF1010-1006S

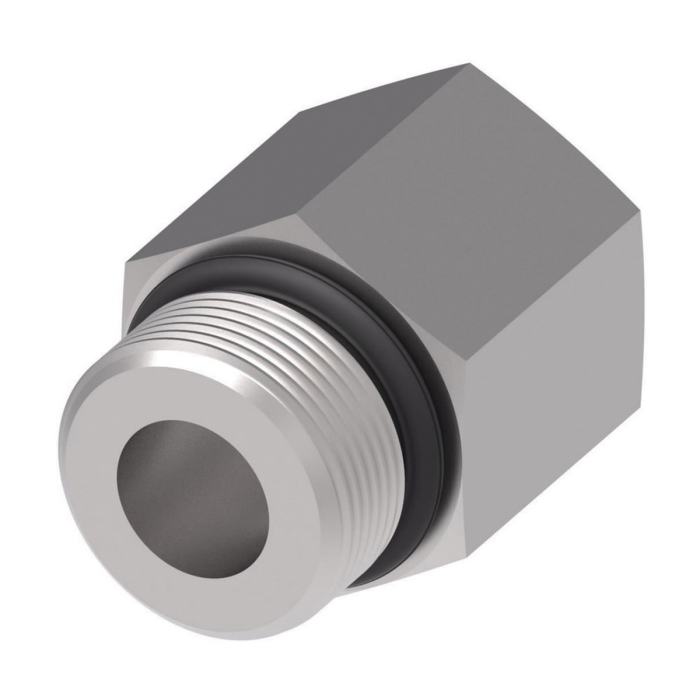

Aeroquip® FF1010 Dura-Kote Carbon Steel Straight Reducer, 5/8 in Male O-Ring Boss x 3/8 in Female O-Ring Boss

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF1010-1006S
  • MPN: FF1010-1006S
  • Alt. MPN: 6410-10-06-O
  • UPC: 639789287557
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® FF1010 Dura-Kote Carbon Steel Straight Reducer, Connection Size 1: 5/8 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 3/8 in, Gender 2: Female, Connection Type 2: O-Ring Boss, 4000 psi, -40 to 250 deg F

Series      :      FF1010
Connection Size 1      :      5/8 in
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      5/8 in ORB
Shape      :      Straight
Connection 2      :      3/8 in ORB
Thread Size 1      :      7/8-14
Thread Size 2      :      9/16-18
Finish      :      Dura-Kote
Length      :      0.81 in
Fitting Type      :      Straight Reducer
Width      :      1 in
Height      :      1 in
Hex Size      :      1 in
Material      :      Carbon Steel
Pressure Rating      :      4000 psi
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      O-Ring Boss

Applications: Chemical processing, food and beverage processing, marine/military, off-shore drilling, pulp and paper industries
