Aeroquip® FF1066-1006S
Send Print
  1. pin-int

Aeroquip® FF1066-1006S

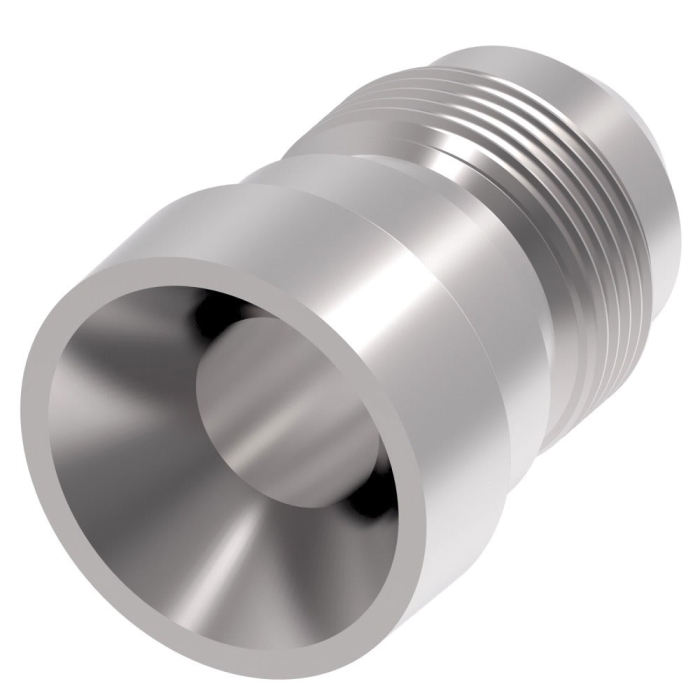

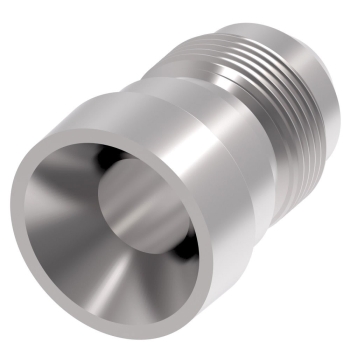

Aeroquip® FF1066 Dura-Kote Carbon Steel Straight Adapter, 5/8 in Female JIC x 3/8 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF1066-1006S
  • MPN: FF1066-1006S
  • UPC: 678146182944
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® FF1066 Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 5/8 in, Gender 1: Female, Connection Type 1: JIC x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: JIC, -65 to -400 deg F

Series      :      FF1066
Connection Size 1      :      5/8 in
Connection Size 2      :      3/8 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      5/8 in JIC
Shape      :      Straight
Connection 2      :      3/8 in JIC
Thread Size 1      :      7/8-14
Thread Size 2      :      9/16-18
Finish      :      Dura-Kote
Length      :      1.03 in
Fitting Type      :      Straight Adapter
Width      :      0.795 in
Height      :      0.795 in
Hex Size      :      0.795 in
Material      :      Carbon Steel
Temperature Rating      :      -65 to -400 deg F
Connection Type 1      :      JIC
Connection Type 2      :      JIC

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
