Aeroquip® FF2209T1212S AER FF2209T1212S | Tipco Technologies
Aeroquip® FF2209T1212S
Send Print
  1. pin-int

Aeroquip® FF2209T1212S

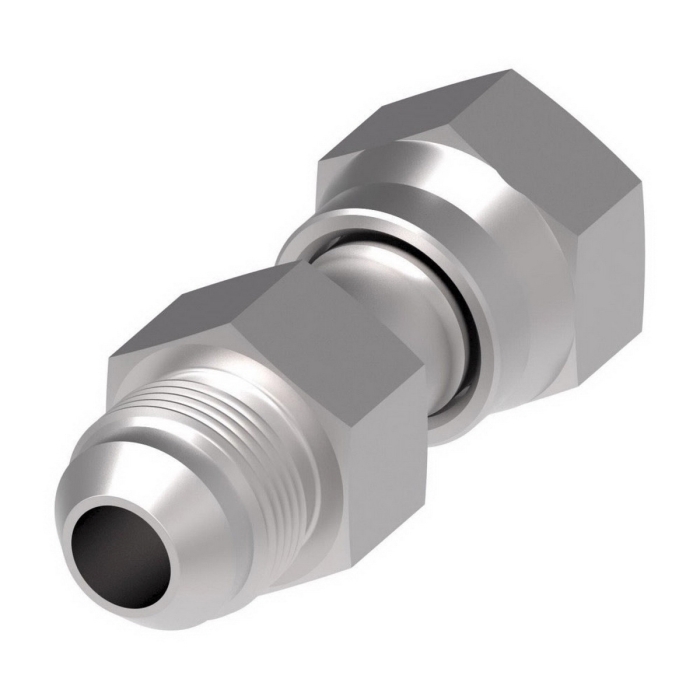

Aeroquip® FF2209T Dura-Kote Carbon Steel Straight Adapter, 3/4 in Female O-Ring Face Seal x 3/4 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF2209T1212S
  • MPN: FF2209T1212S
  • UPC: 678146189448
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® FF2209T Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 3/4 in, Gender 1: Female, Connection Type 1: O-Ring Face Seal x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: JIC, -40 to 250 deg F

Series      :      FF2209T
Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Gender 1      :      Female
Gender 2      :      Male
Connection 1      :      3/4 in ORFS
Shape      :      Straight
Connection 2      :      3/4 in JIC
Thread Size 1      :      1-3/16-12
Thread Size 2      :      1-1/16-12
Finish      :      Dura-Kote
Length      :      2.44 in
Fitting Type      :      Straight Adapter
Width      :      1.375 in
Height      :      1.375 in
Hex Size      :      1-3/8 x 1-1/4 in
Material      :      Carbon Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      JIC

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
