Aeroquip® FF2281T1620S AER FF2281T1620S | Tipco Technologies
Aeroquip® FF2281T1620S
Send Print
  1. pin-int

Aeroquip® FF2281T1620S

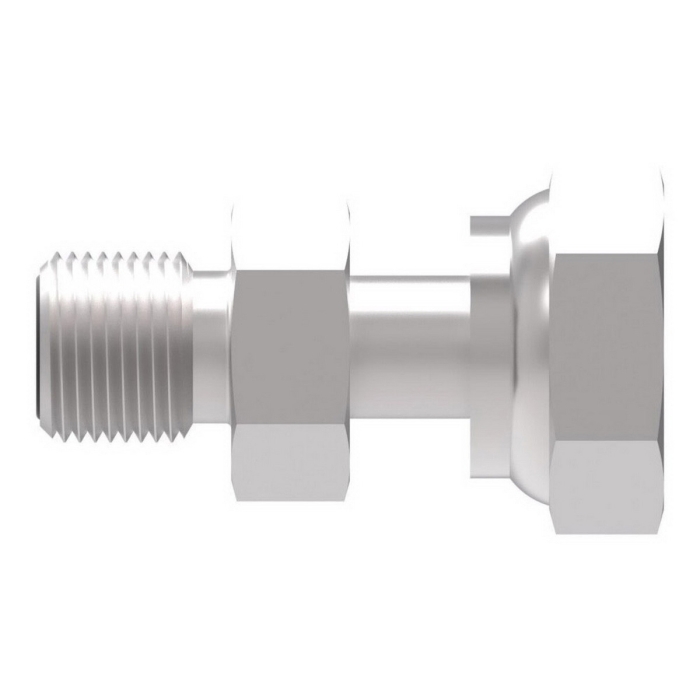

Aeroquip® FF2281T Dura-Kote Carbon Steel Straight Adapter, 1 in Male O-Ring Face Seal x 1-1/4 in Female O-Ring Face Seal

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF2281T1620S
  • MPN: FF2281T1620S
  • UPC: 678146064882
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® FF2281T Dura-Kote Carbon Steel Straight Adapter, Connection Size 1: 1 in, Gender 1: Male, Connection Type 1: O-Ring Face Seal x Connection Size 2: 1-1/4 in, Gender 2: Female, Connection Type 2: O-Ring Face Seal, -40 to 250 deg F

Series      :      FF2281T
Connection Size 1      :      1 in
Connection Size 2      :      1-1/4 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1 in ORFS
Shape      :      Straight
Connection 2      :      1-1/4 in ORFS
Thread Size 1      :      1-7/16-12
Thread Size 2      :      1-11/16-12
Finish      :      Dura-Kote
Dimension Standards      :      SAE 520123
Length      :      2.69 in
Fitting Type      :      Straight Adapter
Width      :      1.875 in
Height      :      1.875 in
Hex Size      :      1-7/8 x 1-5/8 in
Material      :      Carbon Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      O-Ring Face Seal

Applications: Marine/military, chemical processing, pulp and paper industries, food and beverage processing, off-shore drilling
