Brennan 3474-20-20-NWO

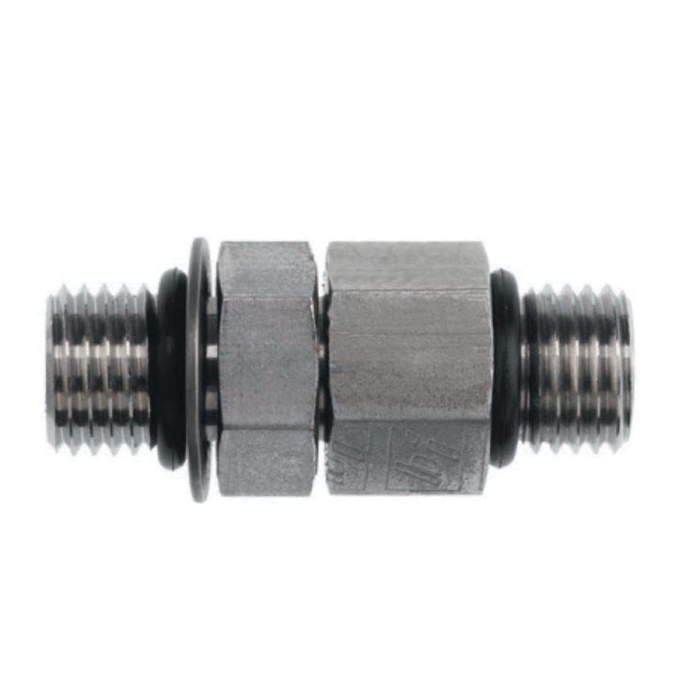

Brennan 3474-NWO Steel Straight Adapter, 1-1/4 in Male SAE ORB

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 3474-20-20-NWO
  • MPN: 3474-20-20-NWO
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan Straight Adapter, Series: 3474-NWO, Connection Type 1: SAE ORB, Gender 1: Male, Connection Size 1: 1-1/4 in, Thread Size 1: 1-5/8-12, Connection Type 2: SAE ORB, Gender 2: Male, Connection Size 2: 1-1/4 in, Thread Size 2: 1-5/8-12, Hex Size: 1-7/8 in, 4000 psi, Steel, 2.31 in Length

California residents see Prop 65 WARNINGS

Series      :      3474-NWO
Connection Size 1      :      1-1/4 in
Connection Size 2      :      1-1/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1-1/4 in ORB
Shape      :      Straight
Connection 2      :      1-1/4 in ORB
Thread Size 1      :      1-5/8-12
Thread Size 2      :      1-5/8-12
Length      :      2.31 in
Fitting Type      :      Straight Adapter
Hex Size      :      1-7/8 in
Material      :      Steel
Pressure Rating      :      4000 psi
Connection Type 1      :      SAE ORB
Connection Type 2      :      SAE ORB

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
