Brennan 5315X12X10
Send Print
  1. pin-int

Brennan 5315X12X10

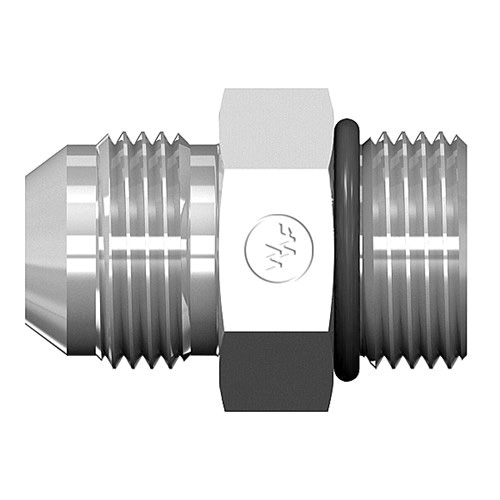

Brennan 5315 Steel Straight Connector, 5/8 in Male JIC x 3/4 in Male O-Ring Boss

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 5315X12X10
  • MPN: 5315X12X10
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 5315 Steel Straight Connector, Connection Size 1: 5/8 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: O-Ring Boss

Series      :      5315
Connection Size 1      :      5/8 in
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      5/8 in JIC
Shape      :      Straight
Connection 2      :      3/4 in ORB
Thread Size 1      :      7/8-14
Thread Size 2      :      1-1/16-12
Length      :      1.88 in
Fitting Type      :      Straight Connector
Hex Size      :      1-1/8 in
Material      :      Steel
Connection Type 1      :      JIC
Connection Type 2      :      O-Ring Boss
