Brennan 5406-20-12 THA 5406-20-12 | Tipco Technologies
Brennan 5406-20-12
Send Print
  1. pin-int

Brennan 5406-20-12

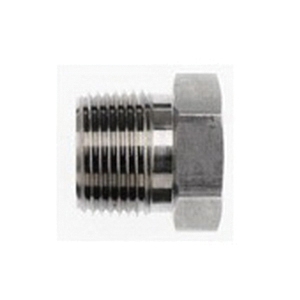

Brennan 5406 Steel Straight Reducer Bushing, 1-1/4 in Male NPT x 3/4 in Female NPT

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 5406-20-12
  • MPN: 5406-20-12
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 5406 Steel Straight Reducer Bushing, Connection Size 1: 1-1/4 in, Gender 1: Male, Connection Type 1: NPT x Connection Size 2: 3/4 in, Gender 2: Female, Connection Type 2: NPT, 3000 psi

Series      :      5406
Connection Size 1      :      1-1/4 in
Connection Size 2      :      3/4 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1-1/4 in NPT
Shape      :      Straight
Connection 2      :      3/4 in NPT
Thread Size 1      :      1-1/4-11-1/2
Thread Size 2      :      3/4-14
Dimension Standards      :      SAE 140140
Length      :      1.47 in
Fitting Type      :      Straight Reducer Bushing
Hex Size      :      1-3/4 in
Material      :      Steel
Pressure Rating      :      3000 psi
Connection Type 1      :      NPT
Connection Type 2      :      NPT
