Brennan 5406-20-08

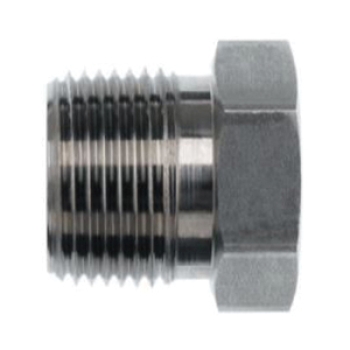

Brennan 5406 Steel Straight Reducer Bushing, 1-1/4 in MNPTF x 1/2 in FNPTF

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 5406-20-08
  • MPN: 5406-20-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan Straight Reducer Bushing, Series: 5406, Connection Type 1: NPTF, Gender 1: Male, Connection Size 1: 1-1/4 in, Thread Size 1: 1-1/4-11-1/2, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-3/4 in, 3000 psi, Steel, 1.47 in Length, Dimension Standards: SAE 140140

California residents see Prop 65 WARNINGS

Series      :      5406
Connection Size 1      :      1-1/4 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1-1/4 in NPT
Shape      :      Straight
Connection 2      :      1/2 in NPT
Thread Size 1      :      1-1/4-11-1/2
Thread Size 2      :      1/2-14
Dimension Standards      :      SAE 140140
Length      :      1.47 in
Fitting Type      :      Straight Reducer Bushing
Hex Size      :      1-3/4 in
Material      :      Steel
Pressure Rating      :      3000 psi
Connection Type 1      :      NPTF
Connection Type 2      :      NPTF

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
