Brennan 6400-24-32-O THA 6400-24-32-O | Tipco Technologies
Brennan 6400-24-32-O
Send Print
  1. pin-int

Brennan 6400-24-32-O

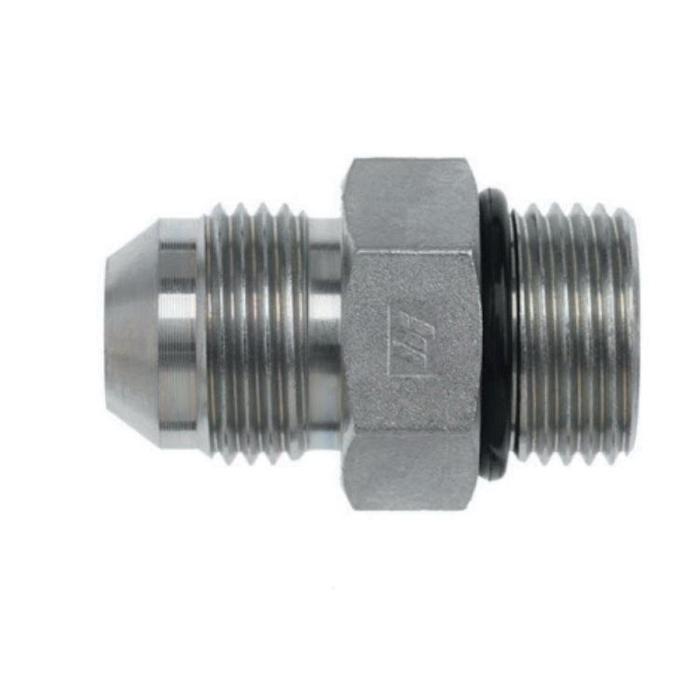

Brennan 6400-O Steel Straight Adapter, 2 in Male O-Ring Boss x 1-1/2 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6400-24-32-O
  • MPN: 6400-24-32-O
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 6400-O Steel Straight Adapter, Connection Size 1: 2 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 1-1/2 in, Gender 2: Male, Connection Type 2: JIC, 2000 psi

Series      :      6400-O
Connection Size 1      :      2 in
Connection Size 2      :      1-1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      2 in ORB
Shape      :      Straight
Connection 2      :      1-1/2 in JIC
Thread Size 1      :      2-1/2-12
Thread Size 2      :      1-7/8-12
Dimension Standards      :      SAE 070120, MS 51525
Length      :      2.53 in
Fitting Type      :      Straight Adapter
Material      :      Steel
Pressure Rating      :      2000 psi
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      JIC
