Brennan 6504-08-08
Send Print
  1. pin-int

Brennan 6504-08-08

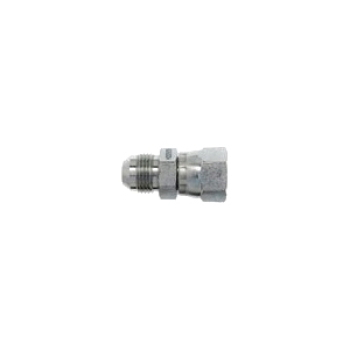

Brennan 6504 Steel Straight Adapter, 1/2 in Male SAE 37 deg JIC x 1/2 in Female SAE 37 deg JIC Swivel

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6504-08-08
  • MPN: 6504-08-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan Straight Adapter, Series: 6504, Connection Type 1: SAE 37 deg JIC, Gender 1: Male, Connection Size 1: 1/2 in, Thread Size 1: 3/4-16, Connection Type 2: SAE 37 deg JIC Swivel, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16, Hex Size: 0.875 x 0.812 in, 5000 psi, Steel, 1.85 in Length

California residents see Prop 65 WARNINGS

Series      :      6504
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1/2 in JIC
Shape      :      Straight
Connection 2      :      1/2 in JIC Swivel
Thread Size 1      :      3/4-16
Thread Size 2      :      3/4-16
Length      :      1.85 in
Fitting Type      :      Straight Adapter
Hex Size      :      0.875 x 0.812 in
Material      :      Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      SAE 37 deg JIC
Connection Type 2      :      SAE 37 deg JIC Swivel

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
