Brennan 6506-08-06

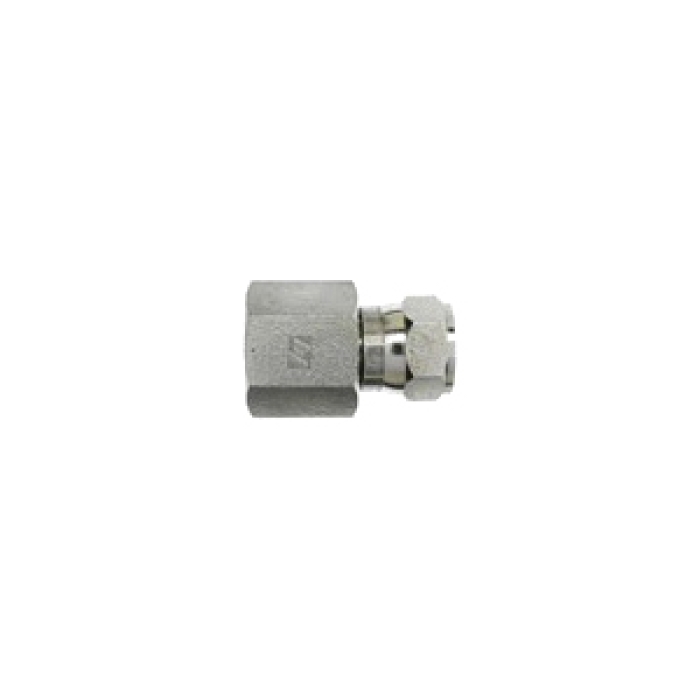

Brennan 6506 Steel Straight Adapter, 3/8 in Female SAE 37 deg JIC Swivel x 1/2 in FNPTF

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6506-08-06
  • MPN: 6506-08-06
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan Straight Adapter, Series: 6506, Connection Type 1: SAE 37 deg JIC Swivel, Gender 1: Female, Connection Size 1: 3/8 in, Thread Size 1: 9/16-18, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 0.688 x 1.125 in, 5000 psi, Steel, 1.92 in Length

California residents see Prop 65 WARNINGS

Series      :      6506
Connection Size 1      :      3/8 in
Connection Size 2      :      1/2 in
Gender 1      :      Female
Gender 2      :      Female
Connection 1      :      3/8 in JIC Swivel
Shape      :      Straight
Connection 2      :      1/2 in NPT
Thread Size 1      :      9/16-18
Thread Size 2      :      1/2-14
Length      :      1.92 in
Fitting Type      :      Straight Adapter
Hex Size      :      0.688 x 1.125 in
Material      :      Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      SAE 37 deg JIC Swivel
Connection Type 2      :      NPTF

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
