Brennan 7000-05-02
Send Print
  1. pin-int

Brennan 7000-05-02

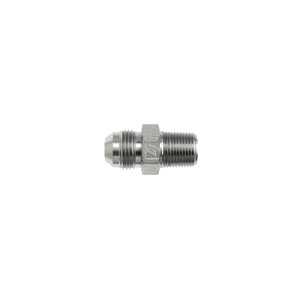

Brennan 7000 Steel Straight Adapter, 1/8 in Male BSPT x 5/16 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 7000-05-02
  • MPN: 7000-05-02
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 7000 Steel Straight Adapter, Connection Size 1: 1/8 in, Gender 1: Male, Connection Type 1: BSPT x Connection Size 2: 5/16 in, Gender 2: Male, Connection Type 2: JIC, 6000 psi

California residents see Prop 65 WARNINGS

Series      :      7000
Connection Size 1      :      1/8 in
Connection Size 2      :      5/16 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/8 in BSPT
Shape      :      Straight
Connection 2      :      5/16 in JIC
Thread Size 1      :      R 1/8-28
Thread Size 2      :      1/2-20
Length      :      31 mm
Fitting Type      :      Straight Adapter
Hex Size      :      14 mm
Material      :      Steel
Pressure Rating      :      6000 psi
Connection Type 1      :      BSPT
Connection Type 2      :      JIC
