Brennan 7005-06-L12-18

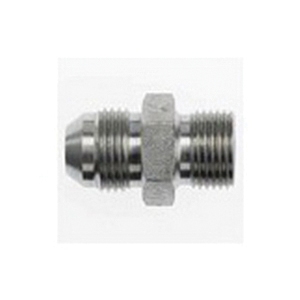

Brennan 7005-L Steel Straight Adapter, L12 Male Metric DIN 24° Tube x 3/8 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 7005-06-L12-18
  • MPN: 7005-06-L12-18
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 7005-L Steel Straight Adapter, Connection Size 1: L12, Gender 1: Male, Connection Type 1: Metric DIN 24° Tube x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: JIC, 5000 psi

California residents see Prop 65 WARNINGS

Series      :      7005-L
Connection Size 1      :      L12
Connection Size 2      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      12 mm Light
Shape      :      Straight
Connection 2      :      3/8 in JIC
Thread Size 1      :      M18 x 1.5
Thread Size 2      :      9/16-18
Length      :      31.1 mm
Fitting Type      :      Straight Adapter
Hex Size      :      19 mm
Material      :      Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      Metric DIN 24° Tube
Connection Type 2      :      JIC
