Brennan 7022-08-08
Send Print
  1. pin-int

Brennan 7022-08-08

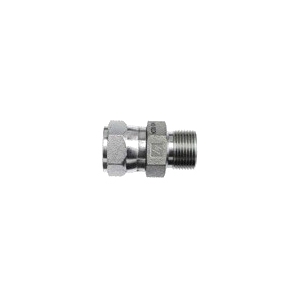

Brennan 7022 Steel Straight Adapter, 1/2 in Male BSPP x 1/2 in Female JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 7022-08-08
  • MPN: 7022-08-08
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 7022 Steel Straight Adapter, Connection Size 1: 1/2 in, Gender 1: Male, Connection Type 1: BSPP x Connection Size 2: 1/2 in, Gender 2: Female, Connection Type 2: JIC, 5000 psi

California residents see Prop 65 WARNINGS

Series      :      7022
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Female
Connection 1      :      1/2 in BSPP
Shape      :      Straight
Connection 2      :      1/2 in JIC
Thread Size 1      :      G 1/2-14
Thread Size 2      :      3/4-16
Length      :      46.1 mm
Fitting Type      :      Straight Adapter
Hex Size      :      22 x 27 mm
Material      :      Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      BSPP
Connection Type 2      :      JIC
