SSP® J4-8C
Send Print
  1. pin-int

SSP® J4-8C

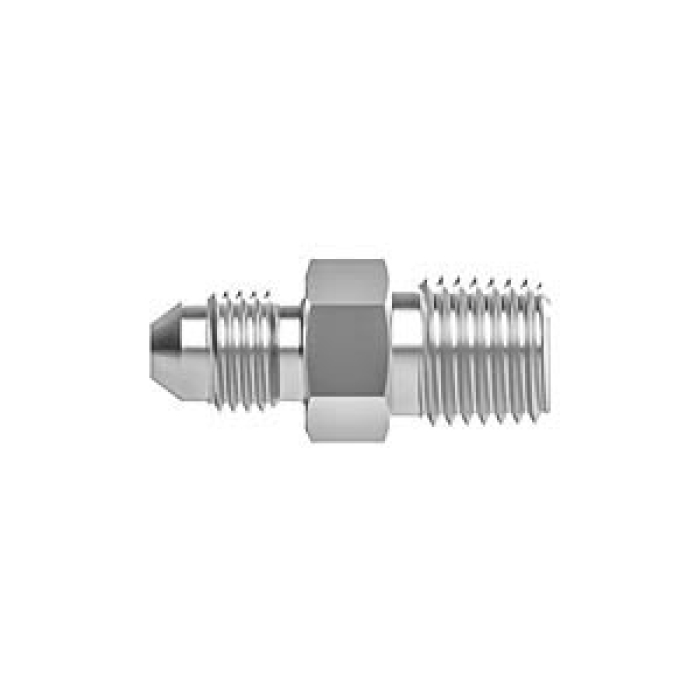

SSP® J-C 316 Stainless Steel Straight Connector, 1/4 in Male SAE 37 deg JIC Flare x 1/2 in MNPT

  • Manufacturers: SSP Corporation
  • Brand Name: SSP®
  • Tipco Part No: SSP J4-8C
  • MPN: J4-8C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

SSP® Straight Connector, Series: J-C, Connection Type 1: SAE 37 deg JIC Flare, Gender 1: Male, Connection Size 1: 1/4 in, Thread Size 1: 7/16-20, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 7/8 in, 6000 psi, 316 Stainless Steel, Dimensions: 1.69 in L

Dimensions      :      1.69 in L
Series      :      J-C
Connection Size 1      :      1/4 in
Connection Size 2      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Connection 1      :      1/4 in JIC
Connection 2      :      1/2 in NPT
Thread Size 1      :      7/16-20
Thread Size 2      :      1/2-14
Fitting Type      :      Straight Connector
Hex Size      :      7/8 in
Material      :      316 Stainless Steel
Pressure Rating      :      6000 psi
Connection Type 1      :      SAE 37 deg JIC Flare
Connection Type 2      :      NPT
  • Connects fractional or metric flared tube to FNPT thread

Standards/Certifications: ASME B31.3

Warranty: Limited Lifetime
