Adaptall 5390L-08
Send Print
  1. pin-int

Adaptall 5390L-08

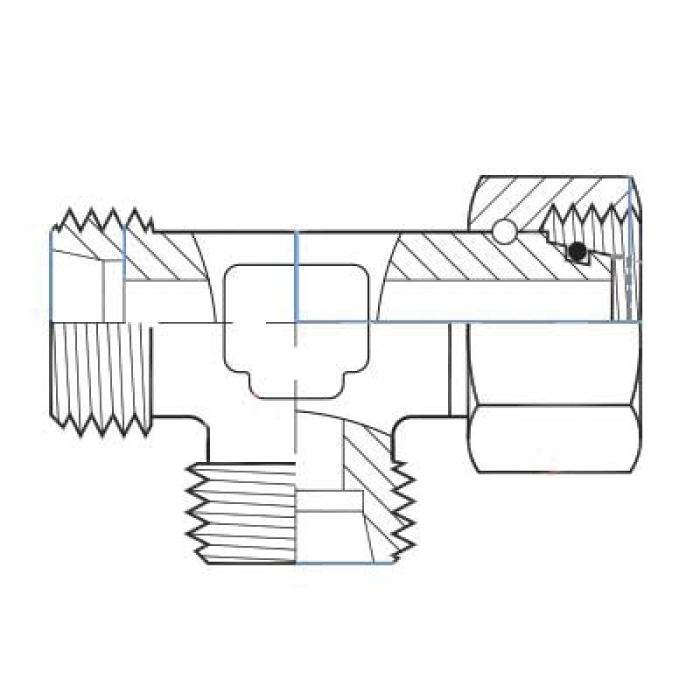

Adaptall 5390 Carbon Steel Light-Duty Tee, 8 mm Male DIN 24 deg Tube x 8 mm Male DIN 24 deg Tube x 8 mm Female DIN Tube Swivel

  • Manufacturers: Adaptall Inc.
  • Brand Name: Adaptall
  • Tipco Part No: ADC 5390L-08
  • MPN: 5390L-08
  • UPC: 5390L-008
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Adaptall Light-Duty Tee, Series: 5390, Connection Type 1: DIN 24 deg Tube, Gender 1: Male, Connection Size 1: 8 mm, Thread Size 1: M14 x 1.5, Connection Type 2: DIN 24 deg Tube, Gender 2: Male, Connection Size 2: 8 mm, Thread Size 2: M14 x 1.5, Connection Type 3: DIN Tube Swivel, Gender 3: Female, Connection Size 3: 8 mm, Thread Size 3: M14 x 1.5, Hex Size: 17 mm, Carbon Steel, 48.5 mm Length, Dimension Standards: DIN 2353, ISO 8434-1

Series      :      5390
Connection Size 1      :      8 mm
Connection Size 2      :      8 mm
Connection Size 3      :      8 mm
Gender 1      :      Male
Gender 2      :      Male
Gender 3      :      Female
Connection 1      :      8 mm Metric
Shape      :      Tee
Connection 2      :      8 mm Metric
Connection 3      :      8 mm Metric Swivel
Thread Size 1      :      M14 x 1.5
Thread Size 2      :      M14 x 1.5
Thread Size 3      :      M14 x 1.5
Dimension Standards      :      DIN 2353, ISO 8434-1
Length      :      48.5 mm
Fitting Type      :      Tee
Hex Size      :      17 mm
Material      :      Carbon Steel
Connection Type 1      :      DIN 24 deg Tube
Connection Type 2      :      DIN 24 deg Tube
Connection Type 3      :      DIN Tube Swivel
