Aeroquip® 203008-16-16S

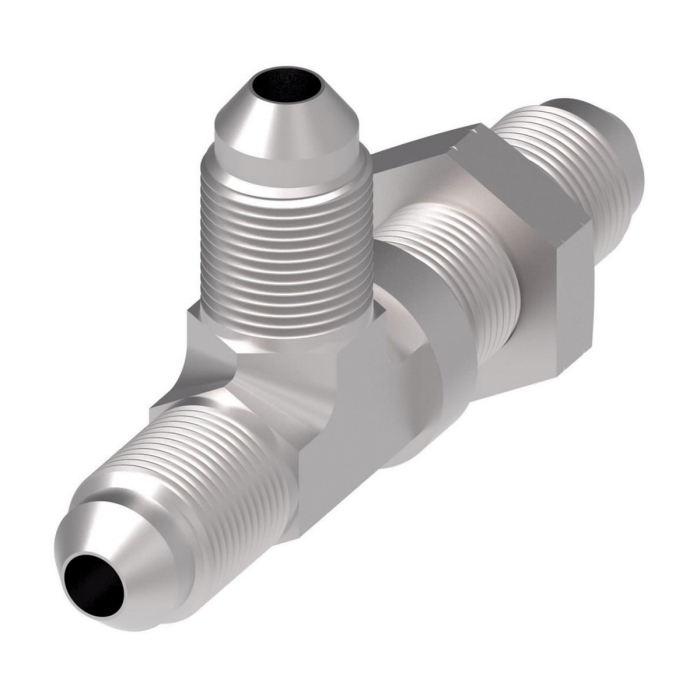

Aeroquip® 203008 Dura-Kote Carbon Steel Union Tee, 1 in Male JIC x 1 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 203008-16-16S
  • MPN: 203008-16-16S
  • Alt. MPN: 2704-LN-16-16-16-FG
  • UPC: 639789285904
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 203008 Dura-Kote Carbon Steel Union Tee, Connection Size 1: 1 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1 in, Gender 2: Male, Connection Type 2: JIC x Connection Size 3: 1 in, Gender 3: Male, Connection Type 3: JIC, 3500 psi, -65 to 400 deg F

Series      :      203008
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Size 3      :      1 in
Gender 1      :      Male
Gender 2      :      Male
Gender 3      :      Male
Connection 1      :      1 in JIC
Shape      :      Tee
Connection 2      :      1 in JIC
Connection 3      :      1 in JIC
Thread Size 1      :      1-5/16-12
Thread Size 2      :      1-5/16-12
Thread Size 3      :      1-5/16-12
Finish      :      Dura-Kote
Dimension Standards      :      SAE 070958
Length      :      4.74 in
Fitting Type      :      Union Tee
Width      :      1.625 in
Height      :      2.7525 in
Hex Size      :      1-1/4 x 1-5/8 in
Material      :      Carbon Steel
Pressure Rating      :      3500 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      JIC
Connection Type 2      :      JIC
Connection Type 3      :      JIC
