Aeroquip® 203101-4-4S

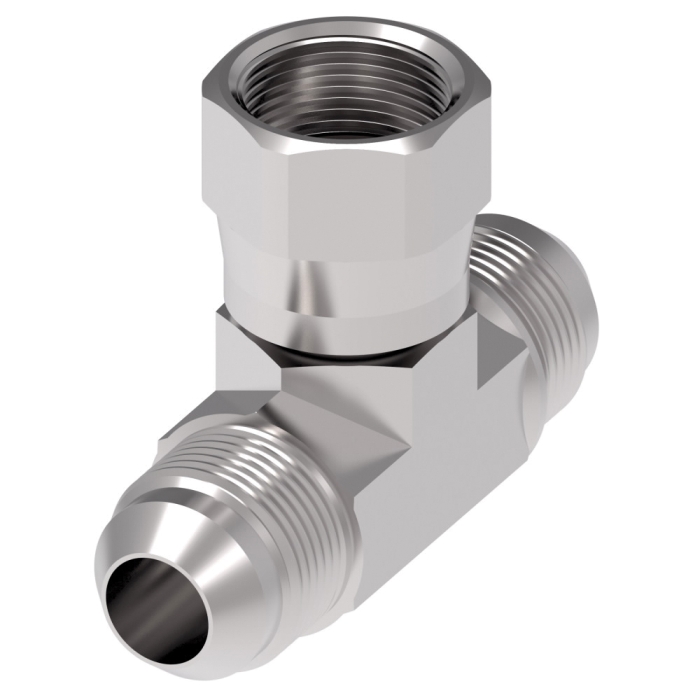

Aeroquip® 203101 Dura-Kote Carbon Steel Tee, 1/4 in Female JIC x 1/4 in Male JIC

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 203101-4-4S
  • MPN: 203101-4-4S
  • Alt. MPN: 6600-04-04-04-FG
  • UPC: 678146049285
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® 203101 Dura-Kote Carbon Steel Tee, Connection Size 1: 1/4 in, Gender 1: Female, Connection Type 1: JIC x Connection Size 2: 1/4 in, Gender 2: Male, Connection Type 2: JIC x Connection Size 3: 1/4 in, Gender 3: Male, Connection Type 3: JIC, 7000 psi, -65 to 400 deg F

Series      :      203101
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Connection Size 3      :      1/4 in
Gender 1      :      Female
Gender 2      :      Male
Gender 3      :      Male
Connection 1      :      1/4 in JIC
Shape      :      Tee
Connection 2      :      1/4 in JIC
Connection 3      :      1/4 in JIC
Thread Size 1      :      7/16-20
Thread Size 2      :      7/16-20
Thread Size 3      :      7/16-20
Finish      :      Dura-Kote
Dimension Standards      :      SAE 070433
Length      :      1.78 in
Fitting Type      :      Tee
Width      :      0.5625 in
Height      :      1.281 in
Hex Size      :      0.472 x 0.5625 in
Material      :      Carbon Steel
Pressure Rating      :      7000 psi
Temperature Rating      :      -65 to 400 deg F
Connection Type 1      :      JIC
Connection Type 2      :      JIC
Connection Type 3      :      JIC

Applications: Chemical processing systems, hydraulic, instrumentation
