Aeroquip® FF2114T1212S AER FF2114T1212S | Tipco Technologies
Aeroquip® FF2114T1212S
Send Print
  1. pin-int

Aeroquip® FF2114T1212S

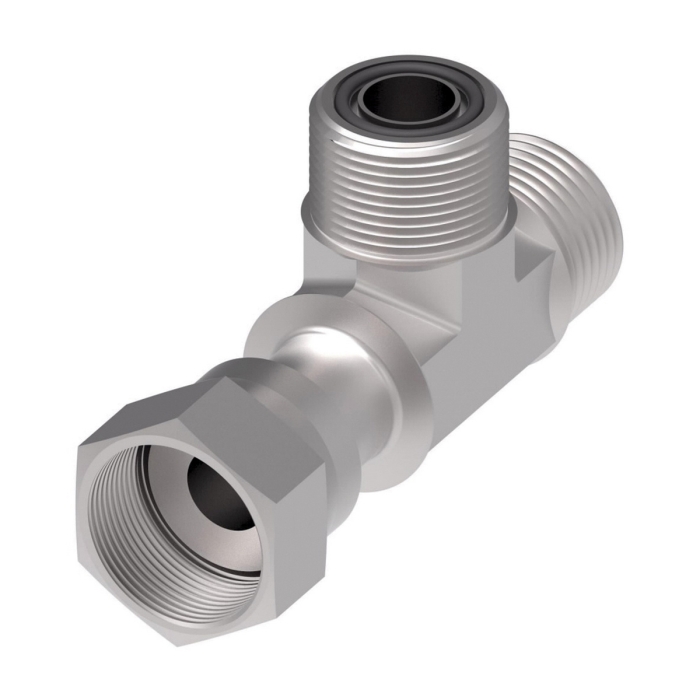

Aeroquip® FF2114T Dura-Kote Carbon Steel Tee, 3/4 in Female O-Ring Face Seal x 3/4 in Male O-Ring Face Seal

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FF2114T1212S
  • MPN: FF2114T1212S
  • Alt. MPN: FS6602-12-12-12-FG
  • UPC: 678146064455
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability
  • Due to supply chain constraints, TIPCO reserves the right to ship the Brennan equivalent of this part.

Aeroquip® FF2114T Dura-Kote Carbon Steel Tee, Connection Size 1: 3/4 in, Gender 1: Female, Connection Type 1: O-Ring Face Seal x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal x Connection Size 3: 3/4 in, Gender 3: Male, Connection Type 3: O-Ring Face Seal, -40 to 250 deg F

Series      :      FF2114T
Connection Size 1      :      3/4 in
Connection Size 2      :      3/4 in
Connection Size 3      :      3/4 in
Gender 1      :      Female
Gender 2      :      Male
Gender 3      :      Male
Connection 1      :      3/4 in ORFS
Shape      :      Tee
Connection 2      :      3/4 in ORFS
Connection 3      :      3/4 in ORFS
Thread Size 1      :      1-3/16-12
Thread Size 2      :      1-3/16-12
Thread Size 3      :      1-3/16-12
Finish      :      Dura-Kote
Dimension Standards      :      SAE 520432
Length      :      3.29 in
Fitting Type      :      Tee
Width      :      1.375 in
Height      :      2.03 in
Hex Size      :      1.063 x 1.375 in
Material      :      Carbon Steel
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      O-Ring Face Seal
Connection Type 3      :      O-Ring Face Seal
