Brennan 2603-08-08-12-FG
Send Print
  1. pin-int

Brennan 2603-08-08-12-FG

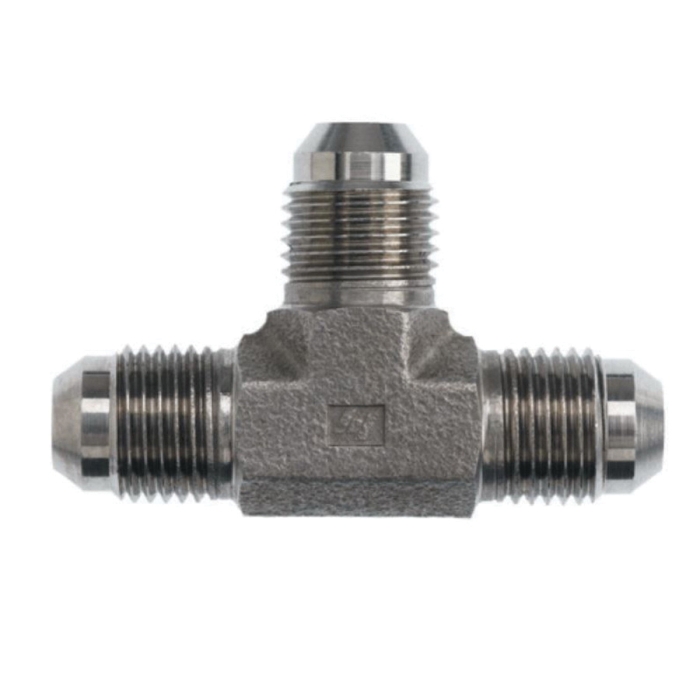

Brennan 2603 Forged Steel Tee, 1/2 in Male JIC x 1/2 in Male JIC x 3/4 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 2603-08-08-12-FG
  • MPN: 2603-08-08-12-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 2603 Forged Steel Tee, Connection Size 1: 1/2 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1/2 in, Gender 2: Male, Connection Type 2: JIC x Connection Size 3: 3/4 in, Gender 3: Male, Connection Type 3: JIC, 5000 psi

Series      :      2603
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Size 3      :      3/4 in
Gender 1      :      Male
Gender 2      :      Male
Gender 3      :      Male
Connection 1      :      1/2 in JIC
Shape      :      Tee
Connection 2      :      1/2 in JIC
Connection 3      :      3/4 in JIC
Thread Size 1      :      3/4-16
Thread Size 2      :      3/4-16
Thread Size 3      :      1-1/16-12
Dimension Standards      :      SAE 070401, MS 51510
Length      :      2.84 in
Fitting Type      :      Tee
Hex Size      :      1.062 in
Material      :      Forged Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      JIC
Connection Type 2      :      JIC
Connection Type 3      :      JIC
