Brennan 2606-08-08-08-FG
Send Print
  1. pin-int

Brennan 2606-08-08-08-FG

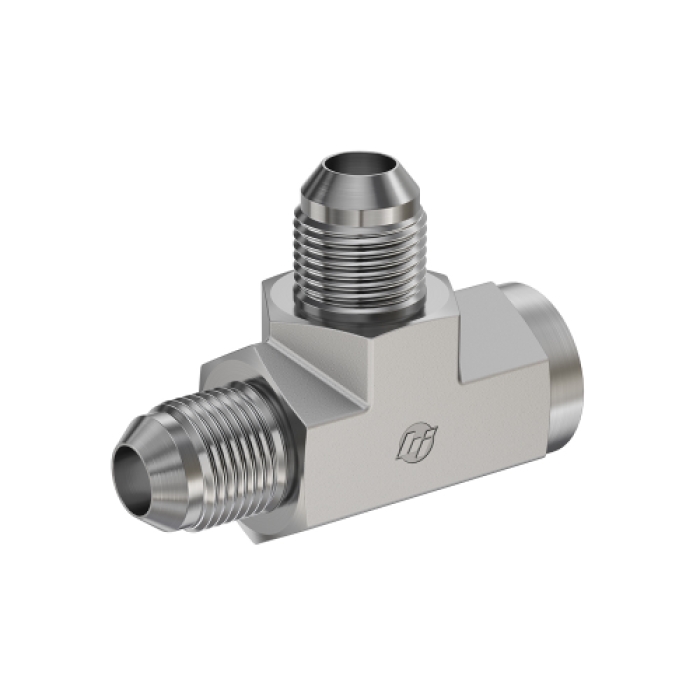

Brennan 2606-FG Forged Steel Tee, 1/2 in Male 37 deg JIC x 1/2 in Male 37 deg JIC x 1/2 in FNPTF

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 2606-08-08-08-FG
  • MPN: 2606-08-08-08-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan Tee, Series: 2606-FG, Connection Type 1: 37 deg JIC, Gender 1: Male, Connection Size 1: 1/2 in, Thread Size 1: 3/4-16, Connection Type 2: 37 deg JIC, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 3/4-16, Connection Type 3: NPTF, Gender 3: Female, Connection Size 3: 1/2 in, Thread Size 3: 1/2-14, 5000 psi, Forged Steel, 2-3/4 in Length, Dimension Standards: MS 51514, SAE 070426

California residents see Prop 65 WARNINGS

Series      :      2606-FG
Connection Size 1      :      1/2 in
Connection Size 2      :      1/2 in
Connection Size 3      :      1/2 in
Gender 1      :      Male
Gender 2      :      Male
Gender 3      :      Female
Connection 1      :      1/2 in JIC
Shape      :      Tee
Connection 2      :      1/2 in JIC
Connection 3      :      1/2 in NPT
Thread Size 1      :      3/4-16
Thread Size 2      :      3/4-16
Thread Size 3      :      1/2-14
Dimension Standards      :      MS 51514, SAE 070426
Length      :      2-3/4 in
Fitting Type      :      Tee
Material      :      Forged Steel
Pressure Rating      :      5000 psi
Connection Type 1      :      37 deg JIC
Connection Type 2      :      37 deg JIC
Connection Type 3      :      NPTF
