Brennan 2703-06-06-06-FG THA 2703-06-06-06 | Tipco Technologies
Brennan 2703-06-06-06-FG
Send Print
  1. pin-int

Brennan 2703-06-06-06-FG

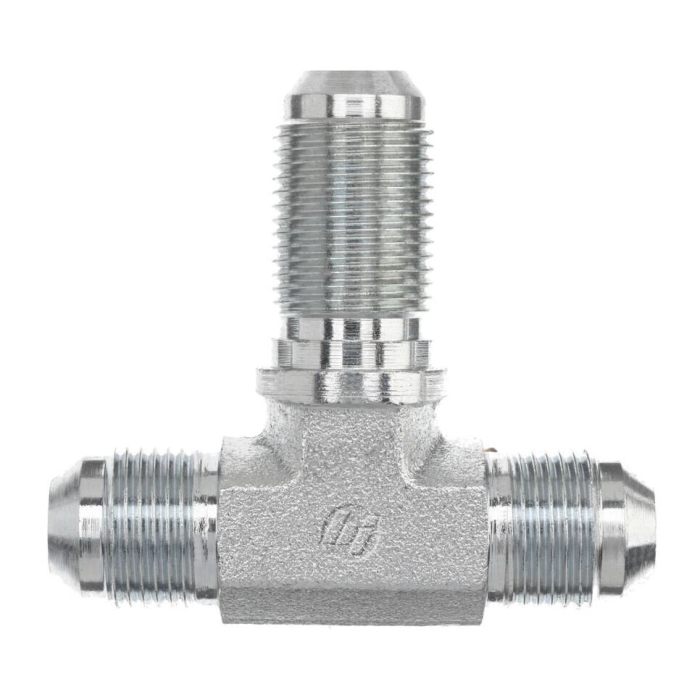

Brennan 2703-FG Forged Steel Bulkhead Branch Tee, 3/8 in Male 37 deg JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 2703-06-06-06
  • MPN: 2703-06-06-06-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan Bulkhead Branch Tee, Series: 2703-FG, Connection Type 1: 37 deg JIC, Gender 1: Male, Connection Size 1: 3/8 in, Thread Size 1: 9/16-18, Connection Type 2: 37 deg JIC, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 9/16-18, Connection Type 3: 37 deg JIC, Gender 3: Male, Connection Size 3: 3/8 in, Thread Size 3: 9/16-18, 6000 psi, Forged Steel, 2.18 in Length, Dimension Standards: MS 51514, SAE 070959

California residents see Prop 65 WARNINGS

Series      :      2703-FG
Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Size 3      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Gender 3      :      Male
Connection 1      :      3/8 in JIC
Shape      :      Tee
Connection 2      :      3/8 in JIC
Connection 3      :      3/8 in JIC
Thread Size 1      :      9/16-18
Thread Size 2      :      9/16-18
Thread Size 3      :      9/16-18
Dimension Standards      :      MS 51514, SAE 070959
Length      :      2.18 in
Fitting Type      :      Tee
Material      :      Forged Steel
Pressure Rating      :      6000 psi
Connection Type 1      :      37 deg JIC
Connection Type 2      :      37 deg JIC
Connection Type 3      :      37 deg JIC

Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
