Brennan 6602-16-16-16-FG
Send Print
  1. pin-int

Brennan 6602-16-16-16-FG

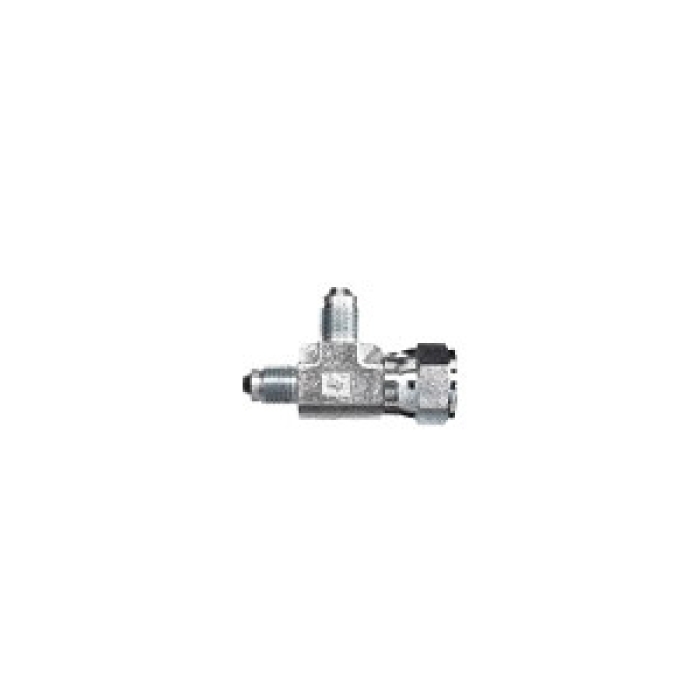

Brennan 6602-FG Forged Steel Tee, 1 in Male JIC x 1 in Female JIC x 1 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6602-16-16-16
  • MPN: 6602-16-16-16-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 6602-FG Forged Steel Tee, Connection Size 1: 1 in, Gender 1: Male, Connection Type 1: JIC x Connection Size 2: 1 in, Gender 2: Female, Connection Type 2: JIC x Connection Size 3: 1 in, Gender 3: Male, Connection Type 3: JIC, 3600 psi

Series      :      6602-FG
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Connection Size 3      :      1 in
Gender 1      :      Male
Gender 2      :      Female
Gender 3      :      Male
Connection 1      :      1 in JIC
Shape      :      Tee
Connection 2      :      1 in JIC
Connection 3      :      1 in JIC
Thread Size 1      :      1-5/16-12
Thread Size 2      :      1-5/16-12
Thread Size 3      :      1-5/16-12
Dimension Standards      :      SAE 070432
Length      :      3.81 in
Fitting Type      :      Tee
Hex Size      :      1-1/2 x 1.312 in
Material      :      Forged Steel
Pressure Rating      :      3600 psi
Connection Type 1      :      JIC
Connection Type 2      :      JIC
Connection Type 3      :      JIC
