Brennan 6850-06-06-06-06-NWO-FG
Send Print
  1. pin-int

Brennan 6850-06-06-06-06-NWO-FG

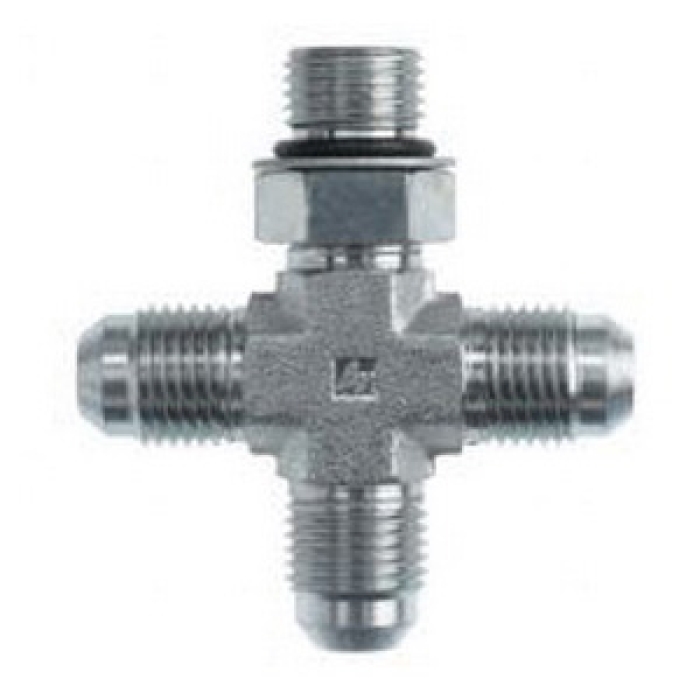

Brennan 6850 Forged Steel Cross, 3/8 in Male O-Ring Boss x 3/8 in Male JIC x 3/8 in Male JIC

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA 6850-06-06-06-06
  • MPN: 6850-06-06-06-06-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan 6850 Forged Steel Cross, Connection Size 1: 3/8 in, Gender 1: Male, Connection Type 1: O-Ring Boss x Connection Size 2: 3/8 in, Gender 2: Male, Connection Type 2: JIC x Connection Size 3: 3/8 in, Gender 3: Male, Connection Type 3: JIC x Gender 4: Male, Connection Type 4: JIC, Connection 4: 3/8 in JIC

California residents see Prop 65 WARNINGS

Series      :      6850
Connection Type 4      :      JIC
Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Size 3      :      3/8 in
Connection Size 4      :      3/8 in
Gender 1      :      Male
Gender 2      :      Male
Gender 3      :      Male
Gender 4      :      Male
Connection 1      :      3/8 in ORB
Shape      :      Cross
Connection 2      :      3/8 in JIC
Connection 3      :      3/8 in JIC
Connection 4      :      3/8 in JIC
Thread Size 1      :      9/16-18
Thread Size 2      :      9/16-18
Thread Size 3      :      9/16-18
Fitting Type      :      Cross
Height      :      2.31 in
Hex Size      :      0.688 in
Material      :      Forged Steel
Connection Type 1      :      O-Ring Boss
Connection Type 2      :      JIC
Connection Type 3      :      JIC
