Brennan FS6602-06-06-06-FG

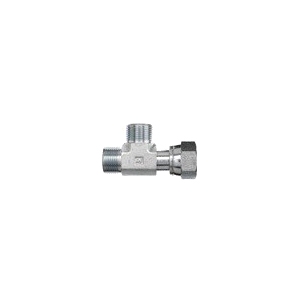

Brennan FS6602 Forged Steel Tee, 3/8 in Male O-Ring Face Seal x 3/8 in Female O-Ring Face Seal x 3/8 in Male O-Ring Face Seal

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA FS6602-06-06-06
  • MPN: FS6602-06-06-06-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan FS6602 Forged Steel Tee, Connection Size 1: 3/8 in, Gender 1: Male, Connection Type 1: O-Ring Face Seal x Connection Size 2: 3/8 in, Gender 2: Female, Connection Type 2: O-Ring Face Seal x Connection Size 3: 3/8 in, Gender 3: Male, Connection Type 3: O-Ring Face Seal, 9200 psi

California residents see Prop 65 WARNINGS

Series      :      FS6602
Connection Size 1      :      3/8 in
Connection Size 2      :      3/8 in
Connection Size 3      :      3/8 in
Gender 1      :      Male
Gender 2      :      Female
Gender 3      :      Male
Connection 1      :      3/8 in ORFS
Shape      :      Tee
Connection 2      :      3/8 in ORFS
Connection 3      :      3/8 in ORFS
Thread Size 1      :      11/16-16
Thread Size 2      :      11/16-16
Thread Size 3      :      11/16-16
Length      :      2.13 in
Fitting Type      :      Tee
Hex Size      :      0.812 in
Material      :      Forged Steel
Pressure Rating      :      9200 psi
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      O-Ring Face Seal
Connection Type 3      :      O-Ring Face Seal
