Brennan FS6804-16-12-12-NWO-FG

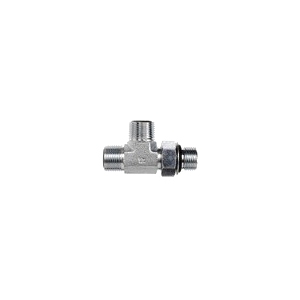

Brennan FS6804 Forged Steel Tee, 1 in Male O-Ring Face Seal x 3/4 in Male O-Ring Face Seal x 3/4 in Male O-Ring Boss

  • Manufacturers: Brennan Industries
  • Brand Name: Brennan
  • Tipco Part No: THA FS6804-16-12-12-NWO-FG
  • MPN: FS6804-16-12-12-NWO-FG
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Brennan FS6804 Forged Steel Tee, Connection Size 1: 1 in, Gender 1: Male, Connection Type 1: O-Ring Face Seal x Connection Size 2: 3/4 in, Gender 2: Male, Connection Type 2: O-Ring Face Seal x Connection Size 3: 3/4 in, Gender 3: Male, Connection Type 3: O-Ring Boss

Series      :      FS6804
Connection Size 1      :      1 in
Connection Size 2      :      3/4 in
Connection Size 3      :      3/4 in
Gender 1      :      Male
Gender 2      :      Male
Gender 3      :      Male
Connection 1      :      1 in ORFS
Shape      :      Tee
Connection 2      :      3/4 in ORFS
Connection 3      :      3/4 in ORB
Thread Size 1      :      1-7/16-12
Thread Size 2      :      1-3/16-12
Thread Size 3      :      1-1/16-12
Dimension Standards      :      SAE 520428
Length      :      3.96 in
Fitting Type      :      Tee
Hex Size      :      1-3/8 in
Material      :      Forged Steel
Connection Type 1      :      O-Ring Face Seal
Connection Type 2      :      O-Ring Face Seal
Connection Type 3      :      O-Ring Boss
