Aeroquip® 4S16DSB10

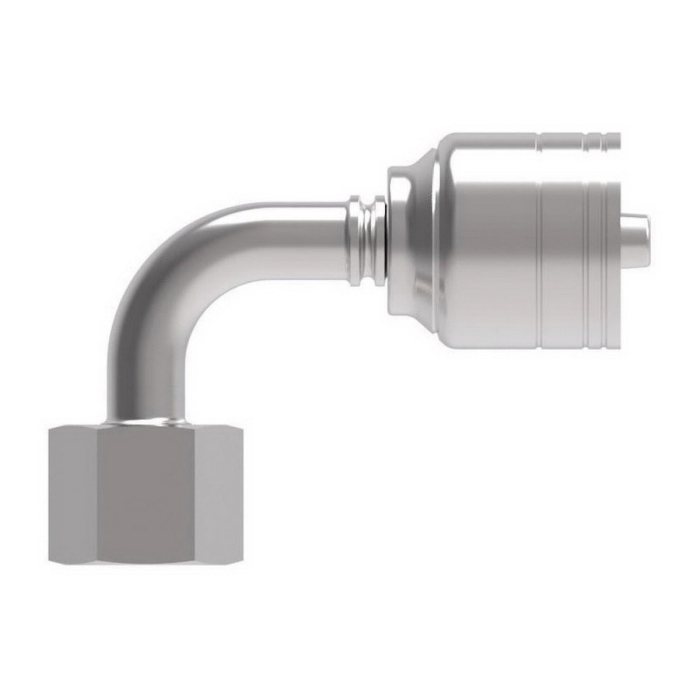

Aeroquip® 4S Series Dura-Kote Carbon Steel Female DIN Heavy 24 deg Seat Swivel 4-Spiral Crimp Hose 90 deg Elbow, 5/8 in x 20 mm
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER 4S16DSB10
- MPN: 4S16DSB10
- UPC: 810903030628
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® 4-Spiral Crimp Hose 90 deg Elbow, 4S Series, Hose Connection: 5/8 in, Connection Type 1: Hose, Connection Size 1: 5/8 in, Hose Dash Size: 10, Connection Type 2: DIN Heavy 24 deg Seat Swivel, Gender 2: Female, Connection Size 2: 20 mm, Nominal Size: 20 in, Thread Size 2: M30 x 2, Hex Size: 1.42 in, Cut-Off Factor: 2.07 in, Carbon Steel, Finish: Dura-Kote, For Use With: EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Hoses, Dimensions: 3.94 in L x 1.48 in W x 2.79 in H, Dimension Standards: SAE J1176
| Fitting Type | : | 90 deg Elbow |
| Gender 2 | : | Female |
| Connection Size 2 | : | 20 mm |
| Nominal Size | : | 20 in |
| Thread Size 2 | : | M30 x 2 |
| Hex Size | : | 1.42 in |
| Cut-Off Factor | : | 2.07 in |
| Material | : | Carbon Steel |
| Finish | : | Dura-Kote |
| For Use With | : | EC525-12 to -32, GH493-12 to -32, FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12 and -16, GH506-12 to -32, FC254-12 to -32, EC810-12 and -16, EC600-12 and -16, H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Hoses |
| Series | : | 4S |
| Dimensions | : | 3.94 in L x 1.48 in W x 2.79 in H |
| Dimension Standards | : | SAE J1176 |
| Hose Connection | : | 5/8 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 5/8 in |
| Hose Dash Size | : | 10 |
| Connection 2 | : | 20 mm Metric |
| Connection Type 2 | : | DIN Heavy 24 deg Seat Swivel |
Danfoss's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.
- New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
- New patent pending dura-seal technology to eliminate hose assembly cool down leakage
- Class zero leakage SAE J1176 on approved hose styles
- Danfoss's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
