Aeroquip® 4S32DLB20
Send Print
  1. pin-int

Aeroquip® 4S32DLB20

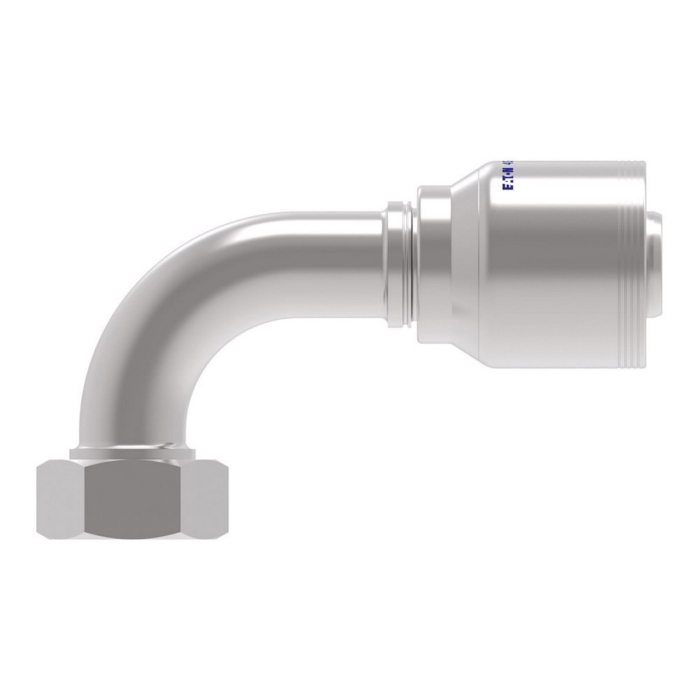

Aeroquip® 4S Series Dura-Kote Carbon Steel Female DIN Light 24 deg Seat Swivel 4-Spiral Crimp Hose 90 deg Elbow, 1-1/4 in x 36 mm

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 4S32DLB20
  • MPN: 4S32DLB20
  • UPC: 678146153913
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® 4-Spiral Crimp Hose 90 deg Elbow, 4S Series, Hose Connection: 1-1/4 in, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, Hose Dash Size: 20, Connection Type 2: DIN Light 24 deg Seat Swivel, Gender 2: Female, Connection Size 2: 36 mm, Nominal Size: 36 in, Thread Size 2: M45 x 2, Hex Size: 50 mm, Cut-Off Factor: 3.9 in, Carbon Steel, Finish: Dura-Kote, For Use With: EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Series Hoses, Dimensions: 6.07 in L x 2.457 in W x 3.11 in H, Dimension Standards: SAE J1176

Fitting Type      :      90 deg Elbow
Gender 2      :      Female
Connection Size 2      :      36 mm
Nominal Size      :      36 in
Thread Size 2      :      M45 x 2
Hex Size      :      50 mm
Cut-Off Factor      :      3.9 in
Material      :      Carbon Steel
Finish      :      Dura-Kote
For Use With      :      EC525-12 to -32, GH493-12 to FC636-12 to -32, FC736-12 to -32, FC500-12 to -24, FC273B-12, -16, GH506-12 to -32, FC254-12 to -32, EC810-12, -16, EC600-12, -16 H430-12 to -32, H430R-12 to -32, EC525-12 to -32, H471-12 to -24, H464-12 to -32, and H485-16 Series Hoses
Series      :      4S
Dimensions      :      6.07 in L x 2.457 in W x 3.11 in H
Dimension Standards      :      SAE J1176
Hose Connection      :      1-1/4 in
Connection Type 1      :      Hose
Connection Size 1      :      1-1/4 in
Hose Dash Size      :      20
Connection 2      :      36 mm Metric
Connection Type 2      :      DIN Light 24 deg Seat Swivel

Danfoss's complete line of crimp fittings provide unmatched quality and performance. Engineered for extremely high-pressure applications, their innovative design and superior corrosion-resistance results in higher operating performance and less equipment downtime.

  • New Dura-Kote™ plating technology for up to 1000 hr of corrosion-resistant
  • New patent pending dura-seal technology to eliminate hose assembly cool down leakage
  • Class zero leakage SAE J1176 on approved hose styles
  • Danfoss's MatchMate™ spiral hose/fitting identification system program provides identification markings on the hose, hose fittings and crimp dies for quick and easy assembly
