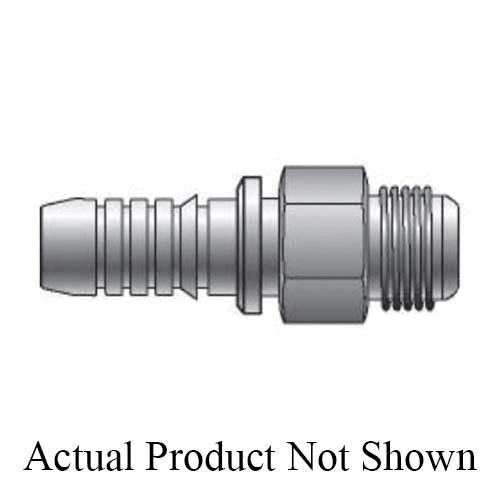

Gates® 20GS-20MJ
Gates® 20GS-20MJ Crimp Straight Hose Fitting, 1-1/4 in x 1-1/4 in, Hose x Male 37 deg JIC Flared, Steel, TuffCoat®
- Manufacturers: Gates Corp
- Brand Name: Gates®
- Tipco Part No: GAT 20GS-20MJ
- MPN: 20GS-20MJ
- UPC: 072053437355
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral wire hydraulic hose applications. The innovative two-piece, no skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5X better corrosion resistance than SAE ASTM B117 specification.
Gates® Crimp Straight Hose Fitting, Gender 2: Male, Connection Size 2: 1-1/4 in, Thread Size 2: 1-5/8-12, 1-3/4 in Hex, 6000 psi, 2.12 in Cut-Off Factor, Steel, TuffCoat®, 4.92 in L, 250 deg F, Connection Type 1: Hose, Connection Size 1: 1-1/4 in, 20 Hose Dash, Connection Type 2: Male 37 deg JIC Flared
| Fitting Type | : | Hose Fitting |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1-1/4 in |
| Thread Size 2 | : | 1-5/8-12 |
| Hex Size | : | 1-3/4 in |
| Pressure Rating | : | 6000 psi |
| Cut-Off Factor | : | 2.12 in |
| Material | : | Steel |
| Finish | : | TuffCoat® |
| Dimensions | : | 4.92 in L |
| Temperature Rating | : | 250 deg F |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 1-1/4 in |
| Hose Dash Size | : | 20 |
| Connection Type 2 | : | Male 37 deg JIC Flared |
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one stem is required for all spiral wire hose-types
- Surpasses one million impulse cycles
- One stem used for all spiral hoses
