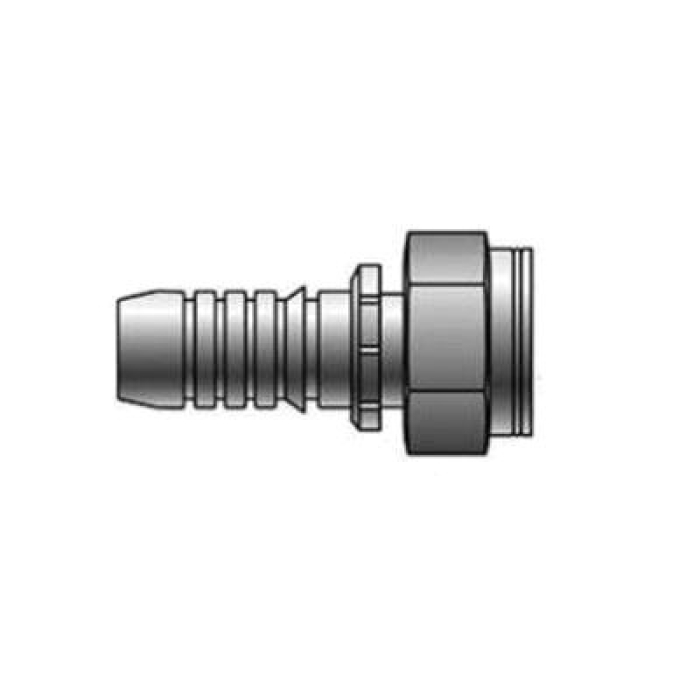

Gates® 10GS-21FFGX
Gates® GlobalSpiral™ 10GS-21FFGX Crimp Straight Hose Fitting, 5/8 in x 21 mm, Hose x French GAZ Swivel, Steel, TuffCoat™
- Manufacturers: Gates Corp
- Brand Name: Gates®
- Tipco Part No: GAT 10GS-21FFGX
- MPN: 10GS-21FFGX
- UPC: 072053579789
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral wire hydraulic hose applications. The innovative two-piece, No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5X better corrosion-resistance than SAE ASTM B117 specification.
Gates® Crimp Straight Hose Fitting, Female Gender 2, Connection Size 2: 21 mm, 21 mm Nominal, M30x1.5 Thread Size 2, 36 mm Hex, 6000 psi, 1.44 in Cut-Off Factor, Steel, TuffCoat™, 3.44 in L, 250 deg F, 5/8 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 5/8 in, 10 Hose Dash, 21 mm French GAZ Swivel Connection 2, Connection Type 2: French GAZ Swivel
| Fitting Type | : | Hose Fitting |
| Gender 2 | : | Female |
| Connection Size 2 | : | 21 mm |
| Nominal Size | : | 21 mm |
| Thread Size 2 | : | M30x1.5 |
| Hex Size | : | 36 mm |
| Pressure Rating | : | 6000 psi |
| Cut-Off Factor | : | 1.44 in |
| Material | : | Steel |
| Finish | : | TuffCoat™ |
| Dimensions | : | 3.44 in L |
| Temperature Rating | : | 250 deg F |
| Hose Connection | : | 5/8 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 5/8 in |
| Hose Dash Size | : | 10 |
| Connection 2 | : | 21 mm French GAZ Swivel |
| Connection Type 2 | : | French GAZ Swivel |
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one stem is required for all spiral wire hose-types
- Surpasses 1 M impulse cycles
- One stem used for all spiral hoses
