Gates® 12GS-12FBSPORX90M

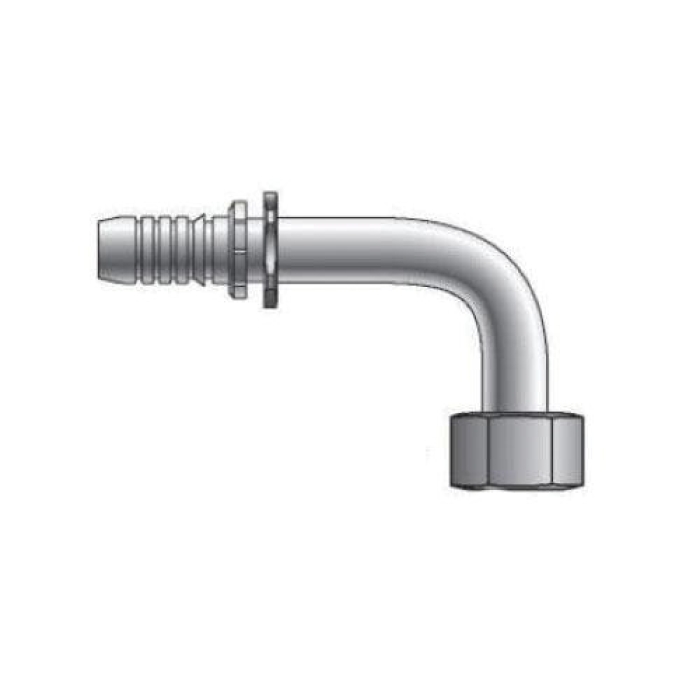

Gates® GlobalSpiral™ 12GS-12FBSPORX90M Crimp Hose Medium Drop 90 deg Elbow, 3/4 in x 3/4 in, Hose x BSPP O-ring Swivel
- Manufacturers: Gates Corp
- Brand Name: Gates®
- Tipco Part No: GAT 12GS-12FBSPORX90M
- MPN: 12GS-12FBSPORX90M
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral wire hydraulic hose applications. The innovative two-piece, No-skive design allows for fast, tailor made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Coated with TuffCoat® plating more than 5X better corrosion-resistance than SAE ASTM B117 specification.
Gates® Crimp Hose Medium Drop 90 deg Elbow, Female Gender 2, Connection Size 2: 3/4 in, 3/4 in Nominal, 3/4-14 Thread Size 2, 32 mm Hex, 6000 psi, 72.5 mm Cut-Off Factor, Steel, TuffCoat™, 250 deg F, 3/4 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 3/4 in, 12 Hose Dash, 3/4 in BSPP O-Ring Swivel Connection 2, Connection Type 2: BSPP O-Ring Swivel
| Fitting Type | : | 90 deg Elbow |
| Gender 2 | : | Female |
| Connection Size 2 | : | 3/4 in |
| Nominal Size | : | 3/4 in |
| Thread Size 2 | : | 3/4-14 |
| Hex Size | : | 32 mm |
| Pressure Rating | : | 6000 psi |
| Cut-Off Factor | : | 72.5 mm |
| Material | : | Steel |
| Finish | : | TuffCoat™ |
| Temperature Rating | : | 250 deg F |
| Hose Connection | : | 3/4 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 3/4 in |
| Hose Dash Size | : | 12 |
| Connection 2 | : | 3/4 in BSPP O-ring Swivel |
| Connection Type 2 | : | BSPP O-ring Swivel |
- Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
- Reduces parts inventory by 30% since only one stem is required for all spiral wire hose-types
- Surpasses 1 M impulse cycles
- One stem used for all spiral hoses
