GlobalSpiral™ couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral wire hydraulic hose applications. They can be used with all Gates® MegaSys® four and six-spiral wire hose up to 6000 psi. When used with 2-wire ferrules, GlobalSpiral™ couplings can also be crimped on Gates® wire-braid hoses. The innovative, two-piece, No-skive design reduces assembly time, labor, fabrication errors and contamination of the fluid power system. S, M and L Drops per ISO Final Draft International Standard 12151-S.

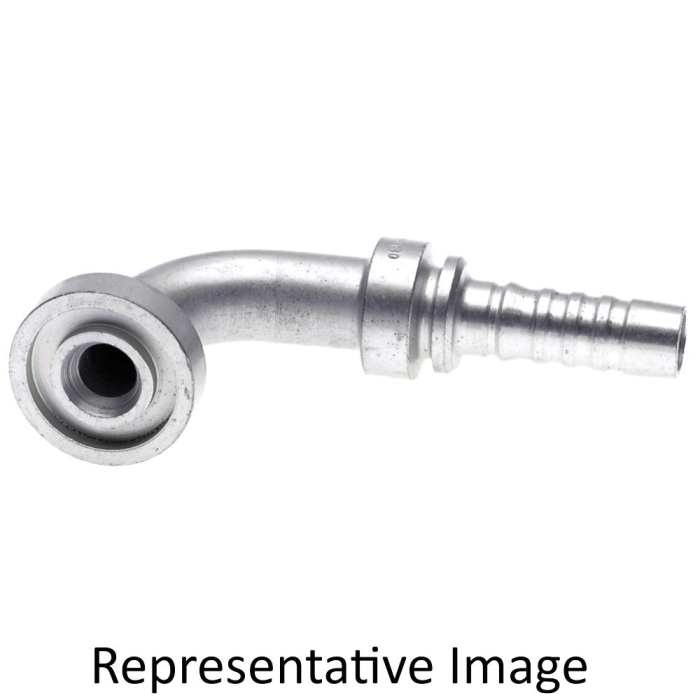

Gates® Crimp Hose Medium Drop 90 deg Elbow, Connection Size 2: 3/4 in, 3/4 in Nominal, 6000 psi, 3.09 in Cut-Off Factor, Steel, TuffCoat™, 5.31 in L, 250 deg F, 1 PK Packaging Quantity, 1 in Hose Connection, Connection Type 1: Hose, Connection Size 1: 1 in, 16 Hose Dash, 3/4 in Code 62 O-Ring Heavy Flange Connection 2, Connection Type 2: Code 62 O-Ring Heavy Flange
| Fitting Type | : | 90 deg Elbow |
| Connection Size 2 | : | 3/4 in |
| Nominal Size | : | 3/4 in |
| Pressure Rating | : | 6000 psi |
| Cut-Off Factor | : | 3.09 in |
| Material | : | Steel |
| Finish | : | TuffCoat™ |
| Dimensions | : | 5.31 in L |
| Temperature Rating | : | 250 deg F |
| Packaging Quantity | : | 1 PK |
| Hose Connection | : | 1 in |
| Connection Type 1 | : | Hose |
| Connection Size 1 | : | 1 in |
| Hose Dash Size | : | 16 |
| Connection 2 | : | 3/4 in Code 62 O-ring Heavy Flange |
| Connection Type 2 | : | Code 62 O-ring Heavy Flange |
- Bite-the-wire crimp for improved coupling retention
- Tested to an industry-leading 1000000 impulse cycles
- 250 deg F temperature capability for longer assembly life
- Environmentally friendly TuffCoat® plating for 347% better corrosion-resistance than the SAE standard
